Specifications

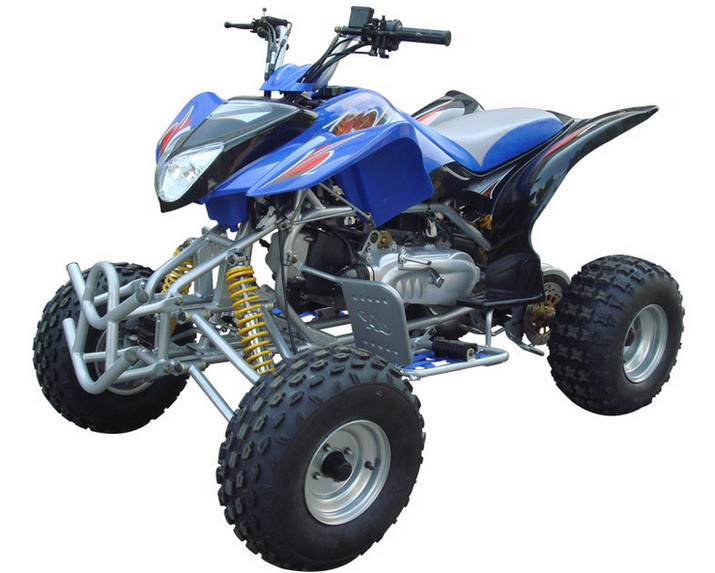

| Prod Model: | 17S |
|---|
Product Description
SPECIFICATIONS: ATV-17S-150CONFIGURE:
Colors available: Blue, black, red, yellow
Features: *
Decals (Y/N): Y
Tool kit (Y/N): Y
Remote start (Y/N): N
Remote engine stop (Y/N): N
Remote alarm (Y/N): N
Speed limiter (Y/N): N
Assembly required: Wheel, hand bar bumper, front panel, battery
ENGINE INFO:
Engine type: CVT, Signal cylinder, 4-stroke
Engine brand: *
Displacement: 150cc
Cooling: Air cooled
Max horsepowe: 6.0/7500rpm
Max torque: 8.3 N. M/6000rpm
Bore*stroke: 2.25inches
Max speed: 32.3 mile/h
Climbing ability: 25degree
Ignition: C. D. I
Starting system: Electric/kick
Battery: 12V9Ah
Carburetor brand: PD24J
Engine oil: SAE15W/40SF
Gear oil: 85W/40
CHASSIS ETC:
Clutch: Automatic
Transmission: 1-speed+reverse
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Suspension, front/rear: Double a-arm/single a-arm
Brakes, front/rear: Drum/disc
Brake operation: Hand
Tires, front/rear: 19.7-8 18*9.5-8
Fuel capacity/type: 1.0gal
Weight, G. W. /N. W: 429.8 /407.8 lbs
Max load: 264.5lbs
DIMENSIONS:
Wheelbase: 49.2inches
OA L*W*H: 68.5*43.3*46inches
Height to seat: 32.6inches
Min ground clearance: 4.7inches
Carton size: 58.2*33*33.4inches
Shipping info: 40HQ/63pcs
