Product Description

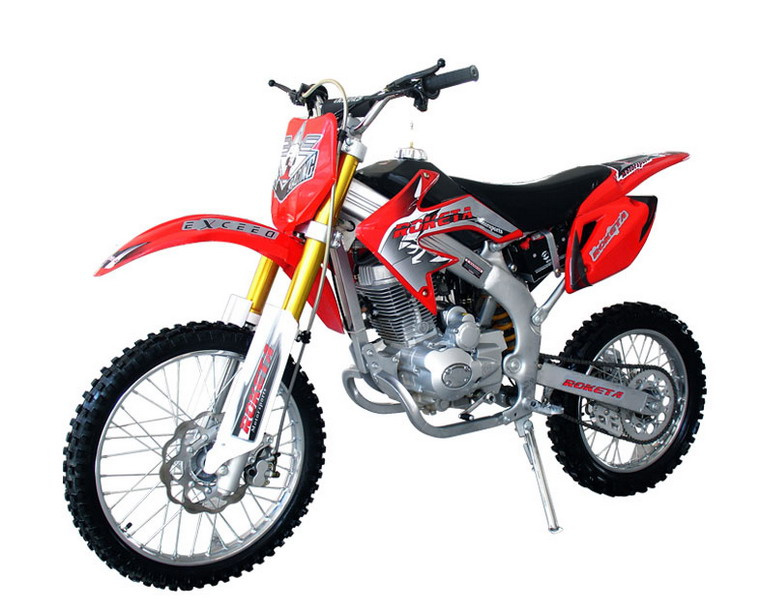

SPECIFICATIONS: DB-36A-250
CONFIGURE:
Colors available: Red, blue, black, Yellow
Features: *
Decals (Y/N): Y
Tool kit (Y/N): Y
Remote start (Y/N): N
Remote engine stop (Y/N): N
Remote alarm (Y/N): N
Speed limiter (Y/N): Y
Assembly required: Front wheel, handlebar, front brake, rear Shock, front fender, front panel
ENGINE INFO:
Engine type: 4-Stroke, single cylinder, CG
Engine brand: *
Displacement: 250cc
Cooling: Air cooled
Max horsepowe: 15.42/7500rpm
Max torque: 17.5n. M/6500rpm
Bore*stroke: *
Max speed: 56 mile/h
Climbing ability: 30degree
Ignition: C. D. I
Starting system: Electric/kick
Battery: 12A /7Ah
Carburetor brand: PZ30
Engine oil: SAE15W/40SF
Gear oil: *
CHASSIS ETC:
Clutch: Manual
Transmission: International gear with 5 speed
Driveline: Chain drive
Driving wheel: Rear wheel drive
Suspension, front/rear: *
Brakes, front/rear: Disc/disc
Brake operation: Hand+foot
Tires, front/rear: 70/100-19 / 90/100-16
Fuel capacity/type: 1.85gal
Weight, G. W. /N. W: 286.6/ 242.5lbs
Max load: 209.4lbs
DIMENSIONS:
Wheelbase: 50.4inches
OA L*W*H: 74.8*31.5*44.1inches
Height to seat: 36.2inches
Min ground clearance: 12.6inches
Carton size: 64.4*16.3*31.9inches
Shipping info: 20GP: 32pcs/ 40HQ: 105pcs
Shanghai Shenke Motorcycle Manufacturing Co., Ltd. is a professional manufacturer and exporter of high-quality ATVs, scooters, go-karts, utility vehicles and their spare parts. With more than 1, 000, 000 square meters of area, our factory now is located in Songjiang Economic Park, lying beside beautiful Huangpu Riverside and adjoins Hongqiao Airport. Taking the advantage of high technology, research and development services, we are striving to make "SHENKE " the first-class brand.
We now has subordinate enterprises, such as frame factory, machining center, storage battery factory, and the engine factory...Also we have set up long-term and steady cooperating relationship with many outstanding related enterprises both at home and abroad. Our company has more than 1500 employees (among them more than 60% have finished graduation in junior college of technical secondary school). Devoted to a high-quality standardization of products, our company holds two assembly lines, two inspection lines, two engine assembly lines and two painting lines, all of which meet the international standard! SHENKE 's ability of annual production capacity is 300, 000pcs of various ATV and SCOOTER and 300, 000 engines.
The network of our existing dealers is all over the world, such as America, Canada, Mexico, India, Italy, Germany, France, Britain, Russia, Venezuela. Australia, Korea, Taiwan, Poland, Greece etc. In June 2007, one marketing center was set up in Mexico.
"To make the best Chinese ATV" is SHENKE's motto. We insist that "quality steps from persistency" and "Persistency gets achievement of future". With high-spirited and vigorous and with a festive stride, SHENKE goes to the world.
