Specifications
Product Description

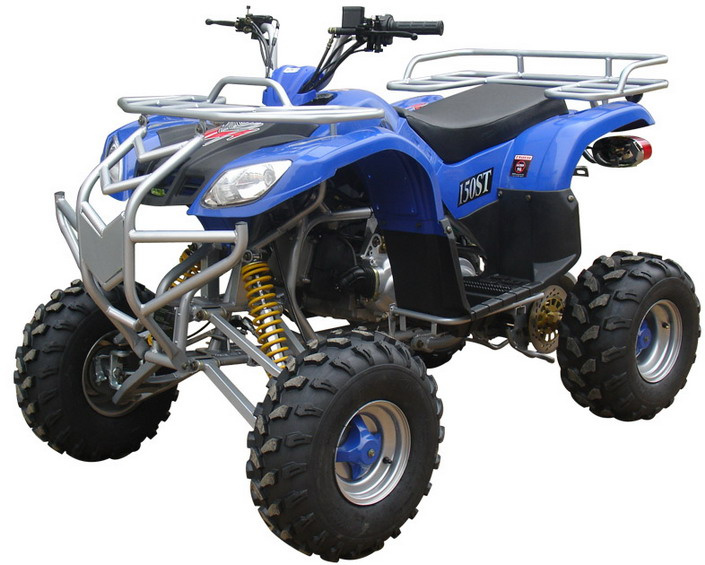

SPECIFICATIONS: ATV-56AS-150CONFIGURE:
Colors available: Maple leaf camouflage, Army green camouflage, red, blue, black
Decals (Y/N): Y
Tool kit (Y/N): Y
Remote start (Y/N): N
Remote engine stop (Y/N): N
Remote alarm (Y/N): N
Speed limiter (Y/N): Y
Assembly required: F/R. Tires, FR. Shock absorber, L/R. Pedal, FR. Bumper, Tailstock, Steering handle, FR. Drum brake, RR. Disc brake
ENGINE INFO:
Engine type: CVT
Displacement: 150cc
Cooling: Air-cooled
Max horsepowe: 6.0hp/7500r/min
Max torque: 8.3n. M/6000r/min
Max speed: 37.2mile/h
Climbing ability: 25degree
Ignition: C. D. I
Starting system: Electric
Battery: 12V/9Ah
Carburetor brand: PZ27
Engine oil: SAE15W/40 SF
Gear oil: 85W/40
CHASSIS ETC:
Clutch: Automatic
Transmission: 1-speed+reverse
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Suspension, front/rear: Double a-arm/single a-arm
Brakes, front/rear: Drum/disc
Brake operation: Hand+foot
Tires, front/rear: 19*7-8 18*9.5-8
Fuel capacity/type: 1.0gal
Weight, G. W. /N. W: 429.8lbs/392.4lbs
Max load: 264.5lbs
DIMENSIONS:
Wheelbase: 49.2 inches
Height to seat: 33.8inches
Min ground clearance: 3.9 inches
Shipping info: 63/40HQ
