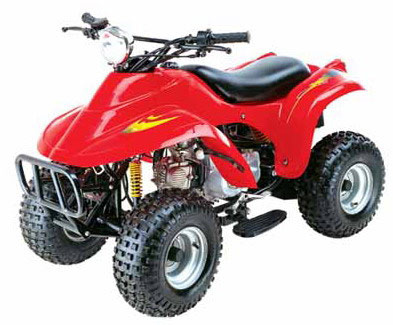

ATV (50ST-A)

Specifications

Prod Model:	50ST-A

Product Description

Parameter of Engine
Engine Model: 147FMB
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore xStroke: 47x41.4(mm xmm)
Ignition: C. D. I.
Lubrication: Pressure/Splash
Max. Power: 3.0/7000(Kw/r/min)
Max. Torque: 4.2/5500(N. M/r/min)
Impression Ratio: 8.8: 1
Starting Type: Electric
Max. Speed: 45(Km/H)
Oil Consumption: 365(g/Kw. H)
Max. Noice: 80(dB)
Clutch Automatic/Separated
Transmission: 4 Forward Gear 3 Forward Gear and 1 Reverse Gear
Parameter of Motorcycle
Dimension : 1400x800x750(LxWxH mm)
Wheel Base: 950(mm)
Gross Weight: 115(Kg)
Dry Weight: 95(Kg)
Transmission Type Chain Drive
Tyre and Rim: F.: 16×8.0-7/R.: 16×8.0-7
Brake Style: F. Drum/R. Disc
Absorber Style: F.: Independent Hanging/R.: Middle Absorber
Displacement: 49.5(ml)
Oiltank Capacity: 4.5(L)
Climbing Ability: 25'
Max. Load: 95(Kg)
Packing Vol: 1380x760x730(LxWxH mm)
Container Capacity: 40': 75 Unit; 20': 36 Unit
