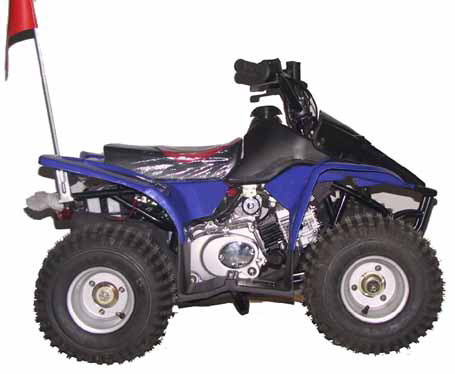

Home Chongqing Xinben Motor Co., Ltd. ATV (50ST-4)
| Prod Model: | 50ST-4 |
|---|
Product Description
Parameter of EngineEngine Model: 139FMA
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore x Stroke: 39x41.4(mm xmm)
Ignition: C. D. I.
Lubrication: Pressure/Splash
Max. Power: 2.8/7000(Kw/r/min)
Max. Torque: 3.9/5500(N. M/r/min)
Impression Ratio: 8.8: 1
Starting Type: Electric
Max. Speed: 25(Km/H)
Oil Consumption: 365(g/Kw. H)
Max. Noise: 80(dB)
Clutch Automatic/Separated
Transmission: 4 Forward Gear
Parameter of Motorcycle
Dimension : 1100x660x750(LxWxH mm)
Wheel Base: 680(mm)
Gross Weight: 83(Kg)
Dry Weight: 64(Kg)
Transmission Type Chain Drive
Tyre and Rim
Brake Style: R. Dick
Absorber Style
Displacement: 49.5(ml)
Oiltank Capacity: 4.5(L)
Climbing Ability: 15'
Max. Load : 35(Kg)
Packing Vol: 1130×650×630
Container Capacity : 20': 54 40GP: 108 40HQ: 144
Chongqing Xinben Motor Co., Ltd. as great and high-reputed leading motor private enterprise in ChongQing China, especially manufacture motorcycle, engine etc. and their accessories for domestic and abroad market.
It covers over 396, 000 m2 and now owns 3 subsidiary factories after invested over RMB80, 000, 000 in China, meanwhile, there are more than 1100 workers and 100 engineers which are most of postgraduates! It has the capability of producing engine about 1, 000, 000 units and 200, 000 units motorcycle every year, so far it has exported products to more than 30 countries in Mid-east, Africa, America and Europe.
As modern motor manufacturers, under advanced technology and strong management, we now have 20 patent products which are all exported to oversea, like dirt bike, ATV, scooter, generator tricycle motorcycle etc. and our motorcycle products passed ISO9000 and CCC, and our generator products have passed EPA, EC, CE certifications, as first class in Chongqing!
Welcome to visit our website and we look forward to set long-term business relationship with you!
