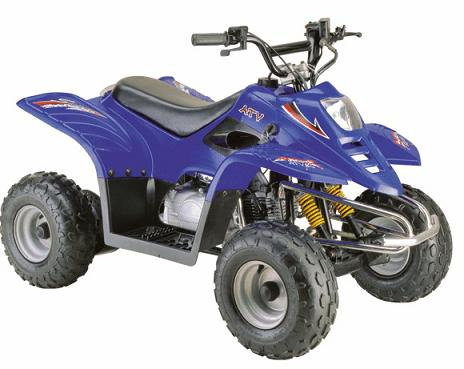

ATV (50ST-2)

Specifications

Prod Model:	50ST-2

Product Description

Parameter of Engine
Engine Model: 139FMB
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore xStroke: 39x41. 4(mm xmm)
Ignition: C. D. I.
Lubrication: Pressure/ Splash
Max. Power: 2.8/7000(Kw/r/min)
Max. Torque: 3.9/5500(N. M/r/min)
Impression Ratio: 8.8: 1
Starting Type: Electric
Max. Speed: 25(Km/H)
Oil Consumption: 365(g/Kw. H)
Max. Noice: 80(dB)
Clutch
Transmission: Auto transmission
Parameter of Motorcycle
Dimension : 1200x730x830(LxWxH mm)
Wheel Base: 835(mm)
Gross Weight: 85(Kg)
Dry Weight: 70(Kg)
Transmission Type Chain Drive
Tyre and Rim
Brake Style: R. Dick
Absorber Style
Displacement: 49.5(ml)
Oiltank Capacity: 4.5(L)
Climbing Ability: 15
Max. Load : 45(Kg)
Packing Vol: 1150*750*680mm
Container Capacity : 20': 42 40': 96 40'H: 128
