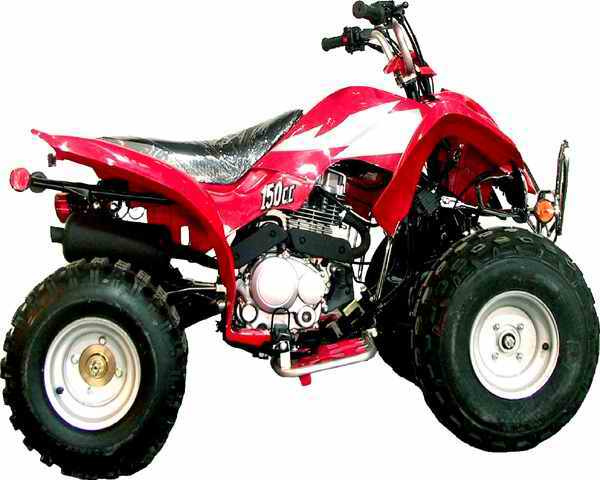

ATV (150ST-E)

Specifications

Prod Model:	150ST-E

Product Description

Parameter of Engine
Engine Model: 162FMJ
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore x Stroke: 62x57.8(mm xmm)
Ignition: C. D. I.
Lubrication: Pressure/ Splash
Max. Power: 9.5/8000(Kw/r/min)
Max. Torque: 10.5/6000(N. M/r/min)
Impression Ratio: 8.8: 1
Starting Type: Electric
Max. Speed: 55(Km/H)
Oil Consumption: 365(g/Kw. H)
Max. Noice: 80(dB)Clutch
Transmission: 5 speed, Rotary 4 Forward Gear and 1 Reverse Gear
Parameter of Motorcycle
Dimension : 1500x850x960(LxWxH mm)
Wheel Base: 1050(mm)
Gross Weight: 173(Kg)
Dry Weight: 151(Kg)
Transmission Type shaft
Tyre and Rim: F.: 19x7-8/R.: 18x9. 50-8
Brake Style: F. Drum/R. Drum
Absorber Style: F.: Independent Hanging/R.: Middle Absorber
Displacement: 149.5ml
Oiltank Capacity: 4.5(L)
Climbing Ability: 25
Max. Load: 95(Kg)
Packing Vol: 1480x835x780(LxWxH mm)
Container Capacity 40': 66Unit 20': 30Unit
