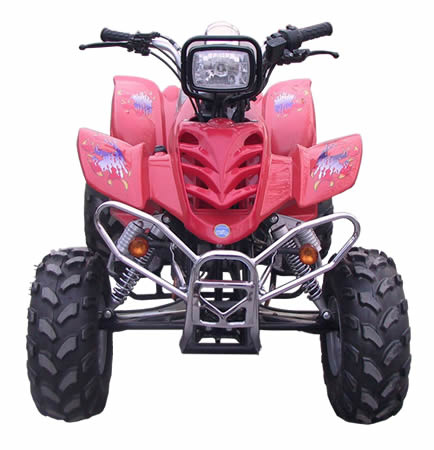

ATV (150ST-C)

Specifications

Prod Model:	150ST-C

Product Description

Parameter of Engine
Engine Model: 1P57QMI
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore * Stroke: 57.8*57.8 mm *mm
Ignition: C. D. I.
Lubrication: Pressure/ Splash
Max. Power: 7.5/7500morethan150 Kw/r/min
Max. Torque: 8.9/4500more than150 N. M/r/min
Impression Ratio: 8.8 /1
Starting Type Electric
Max. Speed: 55 Km/H
Oil Consumption: <365g/Kw H
Max. Noice: 80 dB
Transmission: CVT

Parameter of Motorcycle
Dimension : 1650*1050*1050 L*W*H mm
Wheel Base: 1300mm
Gross Weight: 145Kg
Dry Weight: 125 Kg
Transmission Type Chain
Tyre and Rim: F. 19*7-8/R. 18*9.50-8
Brake Style: F. Drum/R. Disk
Absorber Style: F. Independent Hanging/R. Middle Absorber
Displacement: 124.6ml
Oiltank Capacity: 4.5 L
Climbing Ability: >25degree
Max. Load: 95 Kg
Packing Vol: 1600*950*800 L*W*H mm
Container Capacity: 40 HQ 42 Unit; 20 HQ 14Unit
