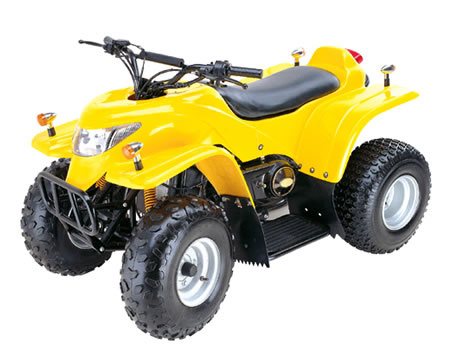

ATV (125ST-B)

Specifications

Prod Model:	125ST-B

Product Description

Parameter of Engine
Engine Model: 1P52QMi
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore*Stroke: 52.4 x 57.8mm
Ignition: C.D.I.
Lubrication: Pressure/Splash
Max.Power: 6.2/7500±150Kw/r/min
Max.Torque: 7.2/4500 150N. M/r/min
Impression Ratio: 8.8/1
Starting Type: Electric
Max. Speed: 55Km/H
Oil Consumption: <365g/KwH
Max. Noice: 80dB
Transmission: CVT

Parameter of Motorcycle
Dimension : 1500 x 850x x 960(LxWxH) mm
Wheel Base: 1050mm
Gross Weight: 145Kg
Dry Weight: 125Kg
Transmission Type Chain
Tyre and Rim: F.19*7-8/R.18*9.50-8
Brake Style: F. Drum/R. Disk
Absorber Style: F. Independent Hanging/R.Middle Absorber
Displacement: 124.6ml
Oiltank Capacity: 4.5L
Climbing Ability: >25
Max. Load : 95Kg
Packing Vol: 1480 x 835 x 760(LxWxH) mm
Container Capacity 40HQ: 66 Unit; 20: 33 Unit
