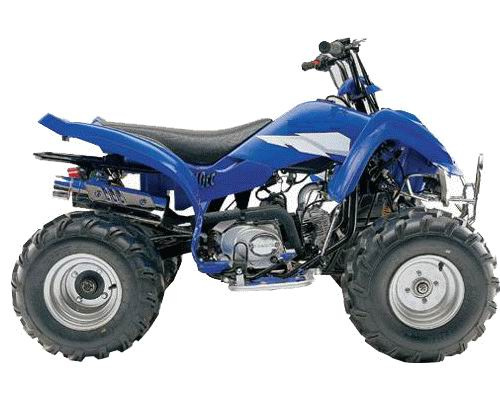

ATV (110ST-E)

Specifications

Prod Model:	110ST-E

Product Description

Parameter of Engine
Engine Model: 152FMH
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore x Stroke: 52.4 x49.5(mm xmm)
Ignition C. D. I.
Lubrication: Pressure/Splash
Max. Power: 4.8/8000(Kw/r/min)
Max. Torque: 6.5/6500(N. M/r/min)
Impression Ratio: 9: 1
Starting Type: Electric
Max. Speed: 50(Km/H)
Oil Consumption: 365(g/Kw. H)
Max. Noise: 80(dB)
Clutch: Automatic/Separated
Transmission: 4 Forward Gear 3 Forward Gear and 1 Reverse Gear
Parameter of Motorcycle
Dimension : 1550x860x950(LxWxH mm)
Wheel Base: 1050(mm)
Gross Weight: 152(Kg)
Dry Weight: 127(Kg)
Transmission Type Shaft
Tyre and Rim "F.: 19x7-8/R.: 18x9.50-8
Brake Style"F. Drum/R. Drum
Absorber Style"F.: Independent Hanging/R.: Middle Absorber
Displacement"108ml
Oiltank Capacity"7.8(L)
Climbing Ability"30'
Max. Load : 959(Kg)
Packing Vol,: 1480x835x780(LxWxH mm)
Container Capacity 40': 66 Unit 20': 30 Unit
