Home Yongkang MTL Metal Products Co., Ltd. ATV -100cc H

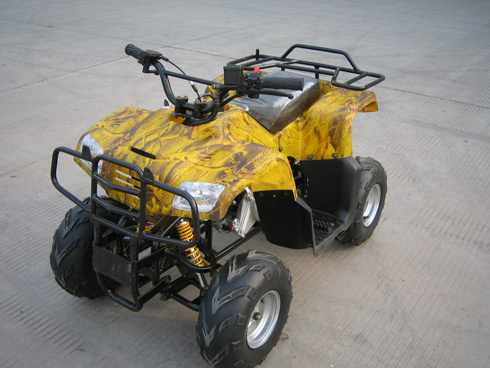

ATV -100cc H
| Price: | Negotiable |
|---|---|
| Trade Terms: | by sea (in general) |
| Min Order: | 1 |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | MTLATV-110 H |
|---|
Product Description
Engine type:1>110cc, 4-stroke, air-cooled, single-cylinder,
2>Max. Power and speed: 5. 5/8500(Kw/rpm)
3>Max. Torque: 6. 5/6000(n. M/rpm)
4>Starting method: Electric
5>Transmission: 4-speed, Auto clutch, chain,
6>Ignition: CDI
Vehicle specifications:
1>Dimensions: (L*W*H)(mm): 1380*820*895
2>Wheel base(mm): 885
3>Ground clearance(mm): 98
4>Max. Speed(km/h): >50
5>Brake method(F/R): Double drum/disc
6>Tire size(F/R): 16*8-7/16*8-7
7>Seat height(mm): 630
8>Suspension(front): Swing-aim suspension
9>Suspension(rear): Complete suspension
10>Fuel capacity: 4L
Carton with steel frame
Carton dimensions: 1160*790*660mm
N. W. /G. W.: 79Kgs/89Kgs
Conveyance:
120pcs/40'HQ
Choose: 50cc, 70cc, 90cc
COLOUR: Blue, red, black, yellow, green, Camo
CE, ISO9001: 2000, VIN
