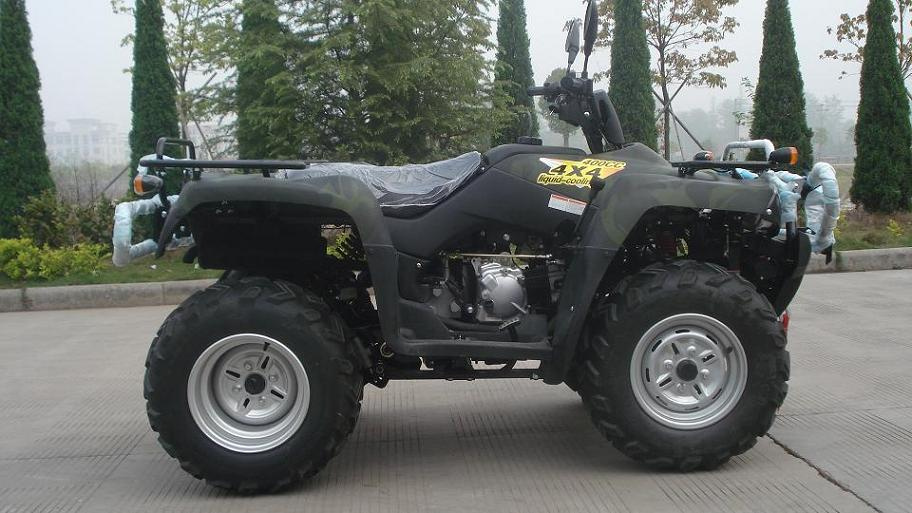

EEC 4wd, Two-Cylinder 400cc ATV

Specifications

Product Description

Specifications:
1) Overall Dimension L*W*H: 2070mm*1150mm*1175mm
2) Ground clearance: 200mm
3) Max. Speed: >60km/h
4) Climbing Ability: >35
5) Specification of front wheel: 25*8-12(38F)
6) Specification of rear wheel: 25*10-12(45F)
7) Distance between front wheel: 860mm
8) Distance between rear wheel: 860mm
9) Distance between front and rear wheel: 600mm
10) Distance between front and rear axle: 1235mm
11) Seat Height: 900mm
12) G. W. /N. W.: 350kg/300kg
13) System F/R, Brake: Disc/Disc
14) Engine: One Cylinder, four-stroke
15) Cylinder dia: Working stroke 81mm*71mm
16) Efficient Capacity: 367ml
17) Rated Power and Rotate Speed: 17. 2kW/7600r/min
18) Max. Torque and Rotate: 26N. M/6000r/min
19) Compressing Ratio: 2. 444-0. 829
20) Gearshift Mode: CVT/Reverse
21) Transmission: 4 drive/shaft drive, manual front drive
22) Starting System: Electric
23) Cooling System: Water cooling
24) Fuel tank: 13L

Loading:
12pcs/20' FCL
36pcs/40' HQ
Package dimensions: 1950*1160*860mm
