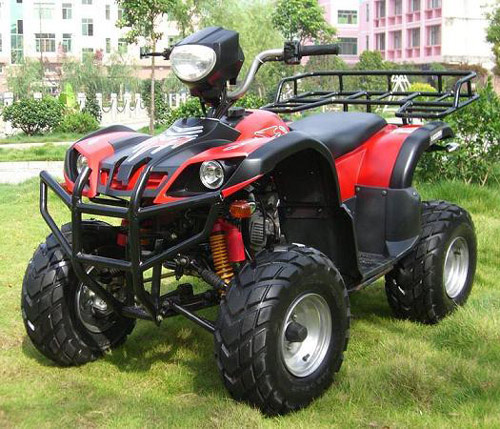

Home Yongkang MTL Metal Products Co., Ltd. ATV-250cc, OX-Model NEW
ATV-250cc, OX-Model NEW
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1 /Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | ATV-250CC, OX |
|---|
Product Description
Detailed Product Description1) Dimensions (L x W x H): 1, 900 x 1, 112 x 1, 160mm
2) Max. Speed: >80km/h
3) Climbing ability: >20
4) Brake system (front/rear): Disc/disc
5) Type of engine: Two cylinders / four strokes / two exhaust
6) Ground clearance: 120mm
7) Specification of front wheel: 21 x 8-10
8) Specification of rear wheel: 22 x 10-10
9) Bore x working stroke: 53mm x 53mm
10) Efficient capacity: 234ml
11) Rated power / rotate speed: 11kW/8, 500rpm
12) Max. Power / rotate speed: 13kW/8, 500rpm
13) Max. Torque / rotate speed: 15N. M/7, 000rpm
14) Compressing ratio: 9. 2: 1
15) Gearshift mode: Five speed (with reverse)
16) Transmission: Double steps
17) Starting system: Electrical starting
18) Cooling system: Air cooling
19) Fuel tank: 7. 5L
Outer packing:
Dimensions (L x W x H): 1, 870 x 1, 150 x 1, 040mm
N. W.: 230kg
G. W.: 250kg
Conveyance:
Qty/20' FCL: 12pcs
Qty/40' FCL: 24pcs
Qty/40' HQ: 36pcs
