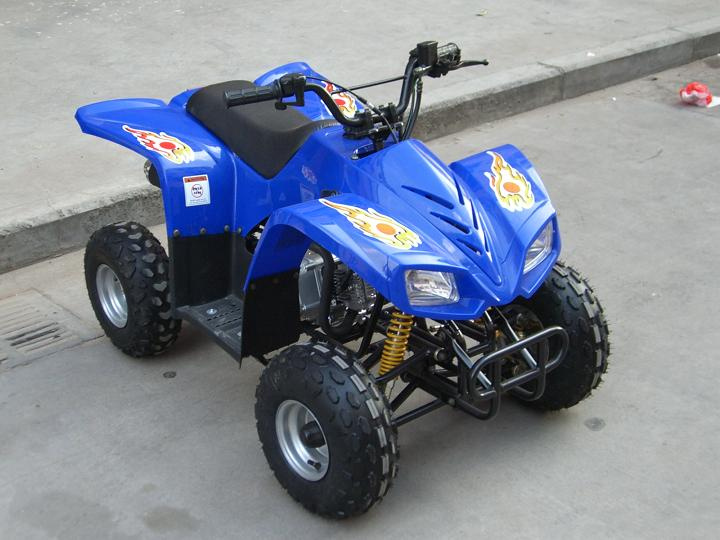

90cc ATV (MTLATV-90 TL)

Specifications

Prod Model:	ATV

Product Description

Detailed Product Description
1>Dimension: (L*W*H): 1, 240*745*1, 100
2>Wheel base (mm): 820
3>Ground clearance (mm): 70
4>Max speed (km/h): >40
5>Brake method(R): Disc
6>Tire size(F/R): 145/70-6 / 145/70-6
7>Seat height(mm): 575
8>Fuel capacity: 3. 5L
Engine type:
1>90cc, 4-stroke, air-cooled, single-cylinder,
2>Max. Power and speed: 2. 0/7500(Kw/rpm)
3>Max. Torque: 2. 5/6000(n. M/rpm)
4>Transmission: 4-speed, Auto clutch, chain,
5>Starting method: Electric, remote
6>Ignition: CDI
Packaging:
Carton with steel frame:
Carton dimensions: 1, 160*690*660mm
Conveyance: 48pcs/20'; 136pcs/40'HQ
N. W. /G. W.: 79KGS/89KGS
COLOUR: Blue, red, black, yellow, green
CE, ISO9001: 2000, VIN
