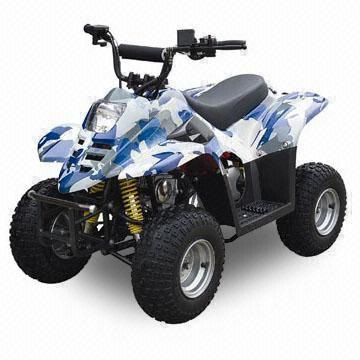

50cc Mini ATV / Quad for Kids (ATV-50A)

Specifications

Prod Model:	ATV-50A

Product Description

50cc MINI ATV / Quad for Kids
Item Number: ATV-50A
Engine: 50cc, single-cylinder, 4 stroke, 90cc/110cc is available
Max speed: 45kph
Max loading: 90kgs
Distance between axles: 690mm
Distance between front wheels: 420mm
Distance between rear wheels: 510mm
Ground clearance: 110mm
Tyres(F/R): 145/70-6; 145/70-6
Rated power and rotation speed: 2. 3kw/8500rpm
Max torque and rotate speed: 2. 7N. M/6500r/min
Compression ratio: 7: 01
Transmission: Fully auto clutch
Starting system: Electric start
Cooling system: Air cooling
Oil tank: 4L
Brake: Rear disc brake
Dimensions(LxWxH): 1140x760x710mm
G. W. /N. W.: 88kgs/69kgs
Packing size: 1160x680x640mm
Conveyance: 48pcs/20"FT; 102pcs/40"FT; 136pcs/40"HQ
