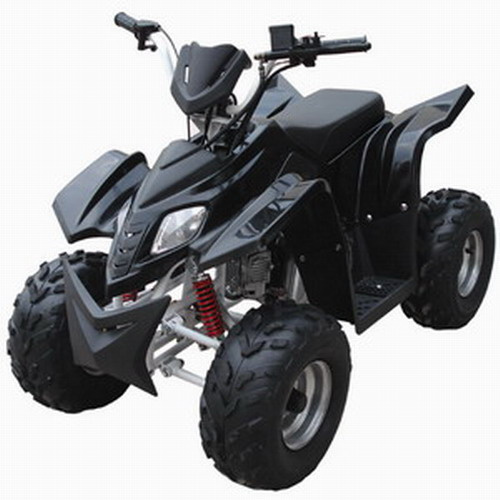

110cc MINI ATV / QUAD (FUTURA Style) (ATV-110A)

Specifications

Prod Model:	ATV-110A

Product Description

110cc MINI ATV/QUAD(Kingkong Style)
Item Number: ATV-110A
Engine: 110cc, single-cylinder, 4 stroke, air cooling
Max speed: 55kph
Max loading: 120kgs
Ground clearance: 120mm
Tyres(F/R): 160/80-7; 160/80-7
Rated power and rotation speed: 5.2kw/7, 500rpm
Max torque and rotate speed: 7.0/5000N. M/rpm
Transmission: Fully auto clutch
Starting system: Electric start
Suspension: Front double swing arm
Oil tank: 3.2L
Brake: Rear disc brake
Dimensions(LxWxH): 1230x720x780mm
G. W. /N. W.: 105kgs/90kgs
Packing size: 1250x720x640mm
Conveyance: 39pcs/20"FT; 81pcs/40"FT; 108pcs/40"HQ
