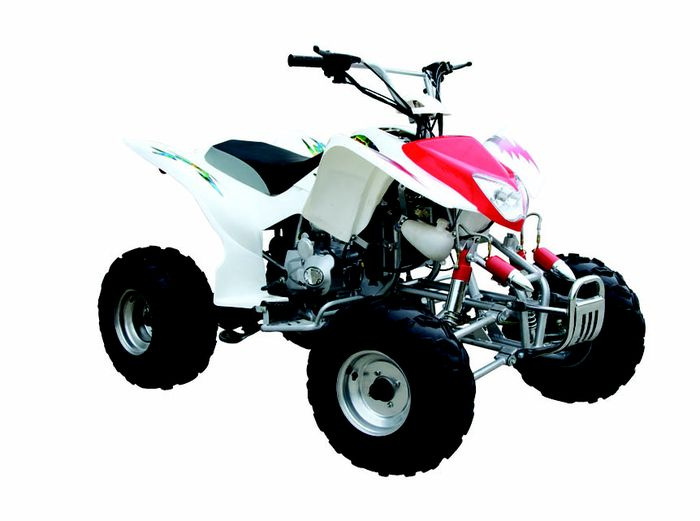

200cc ATV / QUAD for Adult (ATV-200B)

Specifications

Prod Model:	ATV-200B

Product Description

200cc ATV / QUAD for Adult, water-cooled or air cooled
Item Number: ATV-200B
Engine: 200cc, single-cylinder, four-stroke, water-cooled
Max speed: 75kph
Max loading: 150kgs
Ground clearance: 130mm
Tyres(F/R): 19x7-8; 18x9. 5-8
Rated power and rotation speed: 12. 5kW/8, 000rpm
Max torque and rotate speed: 15. 0Nm/6, 000rpm
Starting system: Electric start
Suspension: Front double swing arm
Transmission: Chain, four gears with one reverse gear
Oil tank: 4. 5L
Brake: Front: Drum brake; Rear: Disc brake
Dimensions(LxWxH): 1, 660x980x1030mm
G. W. /N. W.: 170kgs/145kgs
Packing size: 1470x840x740mm
Conveyance: 31pcs/20"FT; 64pcs/40"FT; 66pcs/40"HQ
