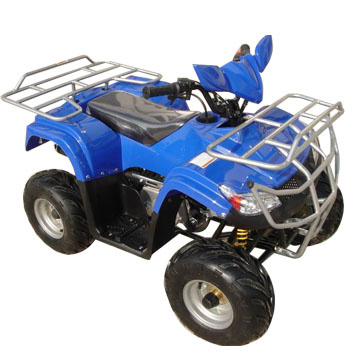

110cc MINI ATV / QUAD (BMW Style) (ATV-110B)

Specifications

Prod Model:	ATV-110B

Product Description

110cc MINI ATV / QUAD (BMW style)
Item Number: ATV-110B
Engine: 110cc, single-cylinder, 4 stroke, air cooling
0Max speed: 55kph
Max loading: 90kgs
Ground clearance: 110mm
Tyres(F/R): 160/80-7; 160/80-7
Rated power and rotation speed: 2.3kw/8500rpm
Max torque and rotate speed: 2.7N. M/6500r/min
Transmission: Fully auto clutch
Starting system: Electric start
Suspension: Front double swing arm
Oil tank: 3L
Brake: Rear disc brake
Dimensions(LxWxH): 1160x770x700mm
G. W. /N. W.: 95kgs/78kgs
Packing size: 1, 250 x 760 x 640mm
Conveyance: 39pcs/20"FT; 81pcs/40"FT; 108pcs/40"HQ
