Home Jinhua Zhenqi Motion Apparatus Co., Ltd. 500cc Four-Stroke Shaft Drive ATV

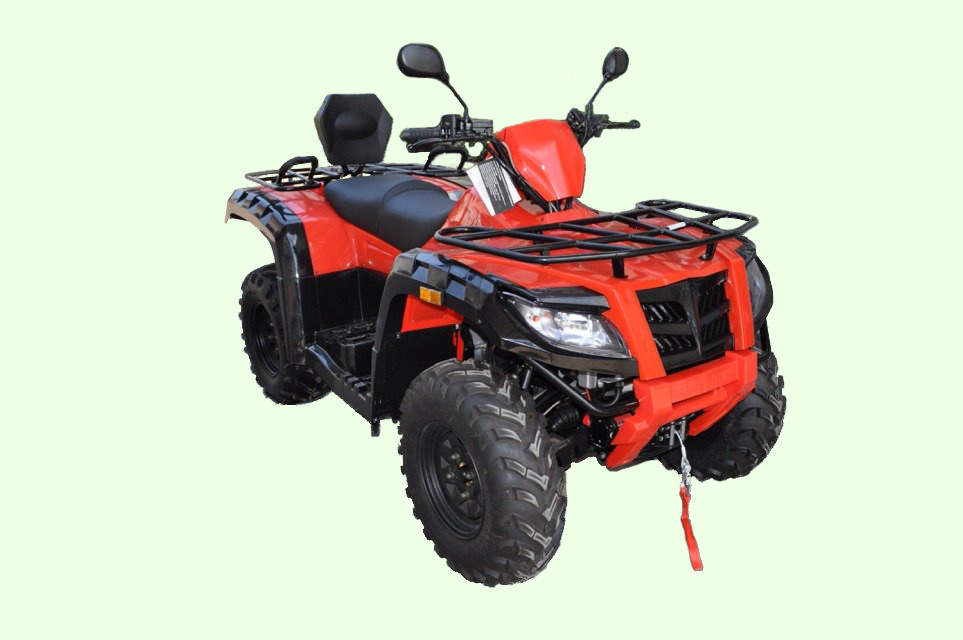

500cc Four-Stroke Shaft Drive ATV
| Price: | US $ 3800-4000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 4/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | SQ500ST-4 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Over Dimension(L*W*H): | 2085*1200*1274 |
| Fuel Type: | Unleaded Petrol Above 90# |
| Ignition Moe: | C.D.I |
| Engine Displacement: | 498ml |
| Compression Ratio: | 8.6:1 |
| Clutch Type: | Single-Plate, Wet Spring |
| Starting Way: | Electric Start Pull Start |
| Petrol Tank Capacity: | 13L |
| Battery Specifications: | 12V36ah |
| Maximum Climbing Degree: | 30 Degrees |
| Transmission Type: | Manual |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Transmission System: | Shaft Drive |
| Fuel: | Gas / Diesel |
| Power: | >1000W |
| Certification: | DOT |
| Condition: | New |
| Displacement: | 500cc |
| Brake Type: | Drum After The Former Disc |
| Maximum Speed: | ≥90km |
| Brand: | Sq |
Product Description

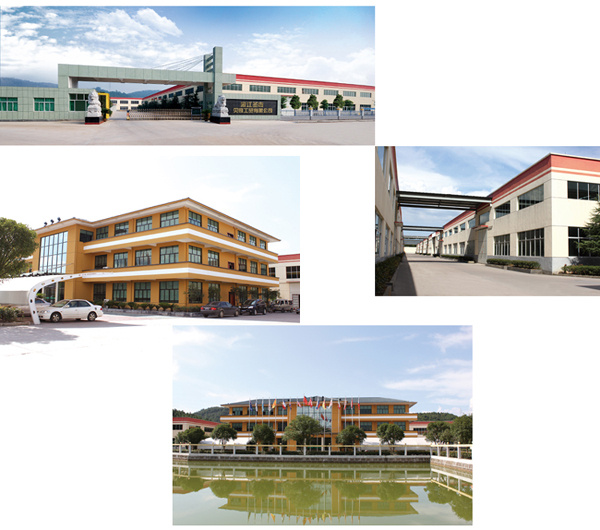

This is our factory
Specification
| Model | SQ500ST-4 |
| Overall dimension(L*W*H) | 2330*1185*1330mm |
| Fuel Type | unleaded petrol above 90 # |
| Wheelbase | 1490mm |
| Max Load | 630 kgs |
| Curb Weight | 443kgs |
| The Max Speed | ≥90km / h |
| Brake mode(front/rear) | drum after the former disc |
| Brake Control Method (front / rear) | hand / foot movement |
| Ignition mode | C.D.I |
| Engine Type | Water-cooled 500CC, single-cylinder,four-stroke; |
| Engine Mode | SQ500 |
| Engine Displacement | 493ml |
| Engine Max Power | 23kw (6300 r / min) |
| Engine rated power/Corresponding Speed | 16kw (4500r/min±5%) kw / r / min |
| Max Engine Torque | 250N.m (660r / min) |
| Compression Ratio: | 10.9:1 |
| The Lowest fuel Consumption Rate | > 329 g / kw/h |
| Clutch Type | Single-plate, wet spring |
| Starting Way | Electric start pull start |
| Oil Grade | SF 15W/40 |
| Petrol tank capacity | 17L |
| Battery Specifications | 12V36Ah |
| Transmission Output Mode: | shaft drive |
| Stalls | 5 files. 2 forward, one back, a neutral gear, a parking stall |
| Idle Speed | 1500±150 r / min |
| Drive Mode | Four Drivers |
| Max Climbing Degree | 30 degrees |
| Container loading(20FT/40FT/40HQ): | 4/8/12 |

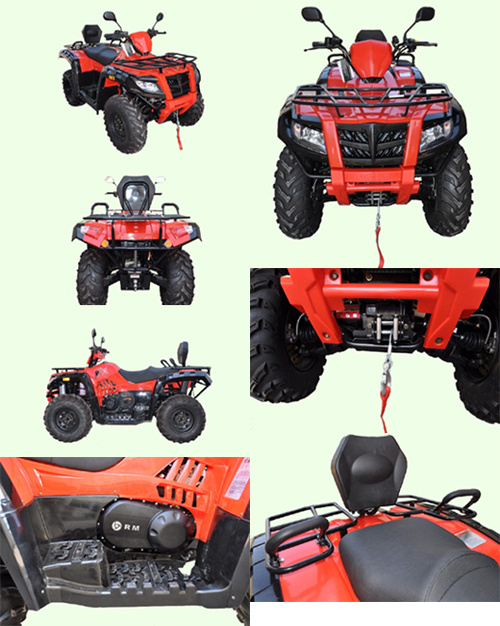

Our ATV SQ500ST-4 designed with the latest technology is suitable for recreation and competition.It is equipped with Water-cooled 500CC manual,single-cylinder,four-stroke engine and convenient electric start.It is fixed with front and rear shock absorber to improve comfort during driving.Its front wheel is fixed with drum type brake and its rear wheel with top quality hydraulic disk type brake to render safe and reliable braking.The car is deluxe,artistic,dynamic,and attractive.
In terms of enthusiasm, continuity and dedication, Jinhua Zhenqi Motion Apparatus Co., Ltd is one of the most representative modern brands of the Southeast Asia sports motion apparatus scene, to the point that the root of the factory settled in Zhejiang Province, China, During its developing years, SQ has tried to furnish itsself into a professional involver in developing, manufacturing and marketing various entertainment vehicles, go-karts, all-terrain vehicles, UTV, jetmotor, dune buggy, motor vehicles, F1and tractors, as well SA providing sincere service.
Our manufacturing plant covers an area of 140, 000 square meters. Jinhua Zhenqi Motion Apparatus Co., Ltd is consisted of dedicated R&D and technical support teams with over &years experience in the motor vehicle industry. Zhenqi Motion Apparatus Co., Ltd was born in2002, thanks to the passionate initiative of great mechanical craftsmen and the founder's passion for local motion apparatus industry, creating a chain of production of motion apparatus.
What LED Jinhua Zhenqi Motion Apparatus Co., Ltd to its steady development the most is the non-stop technological development in accordance with the ever-improving quality control of each component. Two fundamental sapects allowed the factory to do the qualitative leap, guaraneeing the constant planning and productive development process: The employment of a highly qualified staff and the detailed requirements of each production step.
What's more, our many years of experience and technological innovation provide us a competitive advantage in the motor vehicle indury. Jinhua Zhenqi Motion Apparatus Co., Ltd is ISO9001 certified and earns ful product line. ATV's and Go-Karts have earned CE and EEC/EPA approval in Europe and the United States with proven market success by providing quality products to all of our customers.
The factory is running its business towards a modern management, skillfully coupling the numberless sporting victories gained so far with the perfect company administration.
Our manufacturing plant covers an area of 140, 000 square meters. Jinhua Zhenqi Motion Apparatus Co., Ltd is consisted of dedicated R&D and technical support teams with over &years experience in the motor vehicle industry. Zhenqi Motion Apparatus Co., Ltd was born in2002, thanks to the passionate initiative of great mechanical craftsmen and the founder's passion for local motion apparatus industry, creating a chain of production of motion apparatus.
What LED Jinhua Zhenqi Motion Apparatus Co., Ltd to its steady development the most is the non-stop technological development in accordance with the ever-improving quality control of each component. Two fundamental sapects allowed the factory to do the qualitative leap, guaraneeing the constant planning and productive development process: The employment of a highly qualified staff and the detailed requirements of each production step.
What's more, our many years of experience and technological innovation provide us a competitive advantage in the motor vehicle indury. Jinhua Zhenqi Motion Apparatus Co., Ltd is ISO9001 certified and earns ful product line. ATV's and Go-Karts have earned CE and EEC/EPA approval in Europe and the United States with proven market success by providing quality products to all of our customers.
The factory is running its business towards a modern management, skillfully coupling the numberless sporting victories gained so far with the perfect company administration.
