Electric Mini Scooter 250W, 24V
| Price: | US $ 180-200/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 192/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | SQ250DH-2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Over Dimension(L*W*H): | 950mm*285mm*520mm |
| Motor Type: | Brushed DC,250W/24V |
| Motor Max Loaded AMPS: | 17.8A |
| Torque: | 1.21(N.M) |
| Max Rpm: | 2700±7.5%(Rpm) |
| Controller Type: | Air Cooled,Non Water-Proof; Brake Shutoff,Charger |
| Battery: | Lea-Acid Battery,12V/7ah*2PCS |
| Turning Angle: | 32 |
| Seat Height: | 340mm |
| Wheel Base Distance: | 635mm |
| Running Distance: | <45KM |
| Motor: | Brush |
| Max Speed: | <20km/h |
| Battery Type: | Lead-acid Battery |
| Frame Material: | Steel |
| Voltage Of Battery: | 24V |
| Power: | 200-250W |
| Certification: | CE |
| Wheel Hub: | Alloy Hubs |
| Folded: | Folded |
| Charging Time: | 6-8h |
| Brake: | Mechanical Disc,Left Handle Control |
| Maximum Loading Capacity: | <45kgs |
| Wheel Size: | 110/50-6.5 |
Product Description

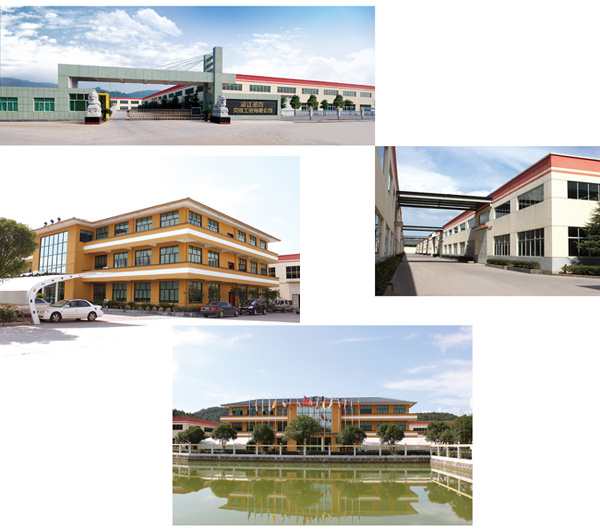

This is our factory
Specification
| Model | 250DH-2 | |
| Products Size(L*W*Hmm) | 920×400×720 | |
| Motor Type | brushed DC , 250W/24V | |
| Motor Max Loaded Amps | 17.8A | |
| Torque | 1.21(N.m) | |
| Max RPM | 2700±7.5%(rpm) | |
| Controller Type | Air cooled, non water -proof; brake shutoff, charger port | |
| Battery | Lead-Acid Battery,12V /7AH*2pcs | |
| Charging Time | 6-8 hours | |
| Battery Charger | Input-100-240VAC,50/60HZ,1.8A Max; Output-DC 24V,1.5A | |
| Special Features | Dismountable Handle bar | |
| Turning Angle | 32º | |
| Transmission Ratio | 92/11 | |
| Seat Height | 340 mm | |
| Wheel base Distance | 635 mm | |
| Front & Rear Tire and Rim | 110/50-6.5 | |
| Maximum Carrying Capacity | 45kgs | |
| 90 mm | |
| Maximum Speed | Low speed :11km/h ; high speed:21 km/h | |
| Maximum Distance Range | 13 km | |
| Control System | handle bar control | |
| Throttle Type | tum control | |
| Front & Rear Braking System | Mechanical disc, left handle control | |
| Drive System | Chian drive | |
| Brake Distance | ≤2m (11km/ h); ≤4m (21km/ h) | |
| Packing Size(L*W*Hmm) | 950×285×520 | |
| N.W/G.W | 23kgs/26kgs | |
| Container loading(20FT/40FT/40HQ): | 192/392/490 |
Loading capacity:
192pcs/20FT; 392pcs/40FT; 490pcs/40HQ
In terms of enthusiasm, continuity and dedication, Jinhua Zhenqi Motion Apparatus Co., Ltd is one of the most representative modern brands of the Southeast Asia sports motion apparatus scene, to the point that the root of the factory settled in Zhejiang Province, China, During its developing years, SQ has tried to furnish itsself into a professional involver in developing, manufacturing and marketing various entertainment vehicles, go-karts, all-terrain vehicles, UTV, jetmotor, dune buggy, motor vehicles, F1and tractors, as well SA providing sincere service.
Our manufacturing plant covers an area of 140, 000 square meters. Jinhua Zhenqi Motion Apparatus Co., Ltd is consisted of dedicated R&D and technical support teams with over &years experience in the motor vehicle industry. Zhenqi Motion Apparatus Co., Ltd was born in2002, thanks to the passionate initiative of great mechanical craftsmen and the founder's passion for local motion apparatus industry, creating a chain of production of motion apparatus.
What LED Jinhua Zhenqi Motion Apparatus Co., Ltd to its steady development the most is the non-stop technological development in accordance with the ever-improving quality control of each component. Two fundamental sapects allowed the factory to do the qualitative leap, guaraneeing the constant planning and productive development process: The employment of a highly qualified staff and the detailed requirements of each production step.
What's more, our many years of experience and technological innovation provide us a competitive advantage in the motor vehicle indury. Jinhua Zhenqi Motion Apparatus Co., Ltd is ISO9001 certified and earns ful product line. ATV's and Go-Karts have earned CE and EEC/EPA approval in Europe and the United States with proven market success by providing quality products to all of our customers.
The factory is running its business towards a modern management, skillfully coupling the numberless sporting victories gained so far with the perfect company administration.
Our manufacturing plant covers an area of 140, 000 square meters. Jinhua Zhenqi Motion Apparatus Co., Ltd is consisted of dedicated R&D and technical support teams with over &years experience in the motor vehicle industry. Zhenqi Motion Apparatus Co., Ltd was born in2002, thanks to the passionate initiative of great mechanical craftsmen and the founder's passion for local motion apparatus industry, creating a chain of production of motion apparatus.
What LED Jinhua Zhenqi Motion Apparatus Co., Ltd to its steady development the most is the non-stop technological development in accordance with the ever-improving quality control of each component. Two fundamental sapects allowed the factory to do the qualitative leap, guaraneeing the constant planning and productive development process: The employment of a highly qualified staff and the detailed requirements of each production step.
What's more, our many years of experience and technological innovation provide us a competitive advantage in the motor vehicle indury. Jinhua Zhenqi Motion Apparatus Co., Ltd is ISO9001 certified and earns ful product line. ATV's and Go-Karts have earned CE and EEC/EPA approval in Europe and the United States with proven market success by providing quality products to all of our customers.
The factory is running its business towards a modern management, skillfully coupling the numberless sporting victories gained so far with the perfect company administration.
