Home Jinhua Zhenqi Motion Apparatus Co., Ltd. 500cc UTV
500cc UTV
| Price: | US $ 4580-4600/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 4/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | SQ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | One Cylinder\Four Stroke\Water-Cooled |
| Bore*Stroke: | 87.2*82mm |
| Driveline: | Shaft Drine 2WD/4WD with Push Button |
| Engine Displacement: | 498ml |
| Compression Ratio: | 10.9:1 |
| Horse Power: | 23kw/6500r/Min |
| Suspension/Front: | Independent Double a-Arm |
| Suspension/Rear: | Independent Double a-Arm |
| Dimensions: | 2665*1320*1925mm |
| Seat Height: | 830mm |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Transmission System: | Shaft Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Power: | 500-800W |
| Certification: | DOT |
| Condition: | New |
| Transmission Type: | Electronic Ignition |
| Displacement: | 500cc |
| Maximum Speed: | ≥90km |
| Brand: | Sq |
Product Description

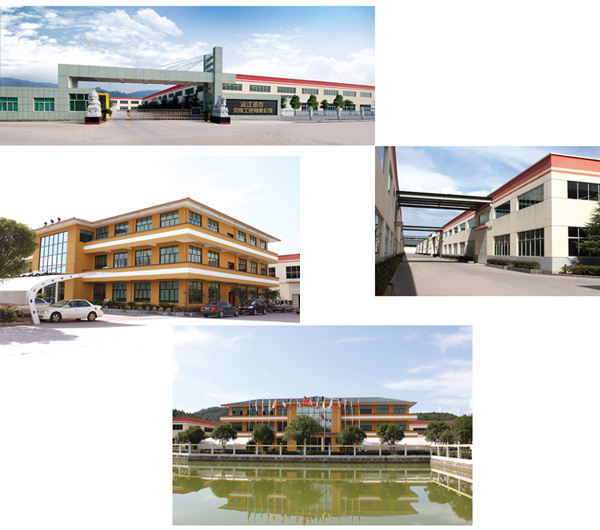

This is our factory
| Model | SQ500NF |
| Engine Type | One Cylinder,Four Stroke,Water-Cooled |
| Bore*Stroke | 87.2mm*82mm |
| Compression Ratio | 10.9:1 |
| Carburetion | CVK UH9 |
| Displacement | 493ml |
| Driveline | Shaft Drive 2WD/4WD with pushbutton |
| Horse Power | 23kw/6500r/min |
| Starter | Electronic Ignition |
| Transmission | Automatic CVT with L-H-N-R |
| Suspension/Front | Independent Double A-Arm |
| Suspension/Rear | Independent Double A-Arm |
| Brakes/Front | Disc |
| Brakes/ Rear | Disc |
| Tires/Front | 25*8-12 |
| Tires/Rear | 25*10-12 |
| Dimensions | 2665*1320*1925mm |
| Seat Height | 830mm |
| Ground Clearance | 340mm |
| Wheelbase | 1940mm |
| Dry Weight | 480kg |
| Fuel Capacity | 26L |
| Packing Size | 2710*1450*980mm |
| Container loading(20FT/40FT/40HQ): | 4/8/12 |

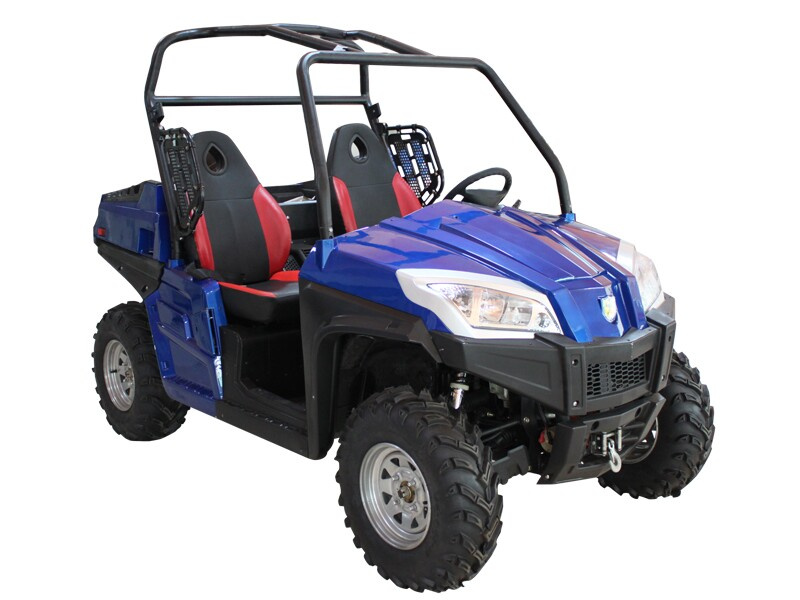

Our Nongfu car SQ500NF designed with the latest technology is suitable for recreation and competition.It is equipped with single-cylinder 4-stroke water-cooled engine and convenient electric start.It is fixed with front and rear shock absorber to improve comfort during driving.Its front wheel is fixed with disc type brake and its rear wheel with top quality hydraulic disk type brake to render safe and reliable braking.
The car is deluxe,artistic,dynamic,and attractive.
In terms of enthusiasm, continuity and dedication, Jinhua Zhenqi Motion Apparatus Co., Ltd is one of the most representative modern brands of the Southeast Asia sports motion apparatus scene, to the point that the root of the factory settled in Zhejiang Province, China, During its developing years, SQ has tried to furnish itsself into a professional involver in developing, manufacturing and marketing various entertainment vehicles, go-karts, all-terrain vehicles, UTV, jetmotor, dune buggy, motor vehicles, F1and tractors, as well SA providing sincere service.
Our manufacturing plant covers an area of 140, 000 square meters. Jinhua Zhenqi Motion Apparatus Co., Ltd is consisted of dedicated R&D and technical support teams with over &years experience in the motor vehicle industry. Zhenqi Motion Apparatus Co., Ltd was born in2002, thanks to the passionate initiative of great mechanical craftsmen and the founder's passion for local motion apparatus industry, creating a chain of production of motion apparatus.
What LED Jinhua Zhenqi Motion Apparatus Co., Ltd to its steady development the most is the non-stop technological development in accordance with the ever-improving quality control of each component. Two fundamental sapects allowed the factory to do the qualitative leap, guaraneeing the constant planning and productive development process: The employment of a highly qualified staff and the detailed requirements of each production step.
What's more, our many years of experience and technological innovation provide us a competitive advantage in the motor vehicle indury. Jinhua Zhenqi Motion Apparatus Co., Ltd is ISO9001 certified and earns ful product line. ATV's and Go-Karts have earned CE and EEC/EPA approval in Europe and the United States with proven market success by providing quality products to all of our customers.
The factory is running its business towards a modern management, skillfully coupling the numberless sporting victories gained so far with the perfect company administration.
Our manufacturing plant covers an area of 140, 000 square meters. Jinhua Zhenqi Motion Apparatus Co., Ltd is consisted of dedicated R&D and technical support teams with over &years experience in the motor vehicle industry. Zhenqi Motion Apparatus Co., Ltd was born in2002, thanks to the passionate initiative of great mechanical craftsmen and the founder's passion for local motion apparatus industry, creating a chain of production of motion apparatus.
What LED Jinhua Zhenqi Motion Apparatus Co., Ltd to its steady development the most is the non-stop technological development in accordance with the ever-improving quality control of each component. Two fundamental sapects allowed the factory to do the qualitative leap, guaraneeing the constant planning and productive development process: The employment of a highly qualified staff and the detailed requirements of each production step.
What's more, our many years of experience and technological innovation provide us a competitive advantage in the motor vehicle indury. Jinhua Zhenqi Motion Apparatus Co., Ltd is ISO9001 certified and earns ful product line. ATV's and Go-Karts have earned CE and EEC/EPA approval in Europe and the United States with proven market success by providing quality products to all of our customers.
The factory is running its business towards a modern management, skillfully coupling the numberless sporting victories gained so far with the perfect company administration.
