500cc ATV
| Price: | US $ 3300-3500/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 4/Piece |
| Pay Type: | T/T |
| Prod Model: | SQ500ST-2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel Type: | Unleades Petrol Above 90# |
| Clutch Type: | Single-Plate,Wet Spring |
| Ignition Mode: | C.D.I |
| Maximum Climbing Degree: | 30 Degrees |
| Idle Speed: | 1500±150r/Min |
| Oil Grade: | Sf 15W/40 |
| Brake Control Method: | Hand/Foot Movement |
| Stalls: | 5 Files,2 Forward,One Back,a Neutral Gear |
| Engine Displacement: | 498ml |
| Petrol Tank Capacity: | 13L |
| Transmission Type: | Manual |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Power: | >1000W |
| Certification: | EPA |
| Condition: | New |
| Displacement: | 500cc |
| Maximum Speed: | ≥90 |
| Brand: | Sq |
Product Description

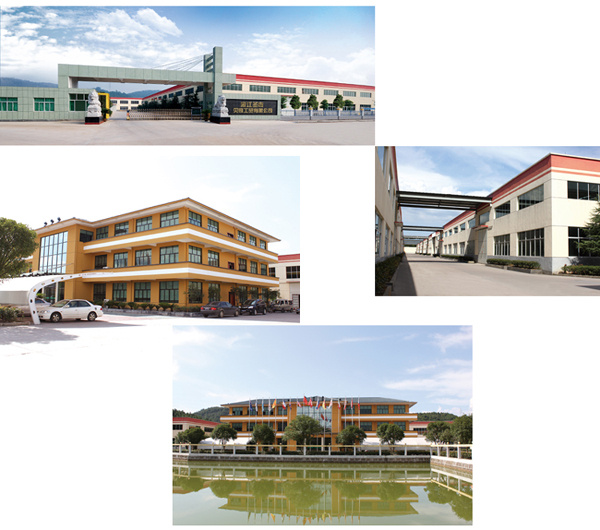

This is our factory

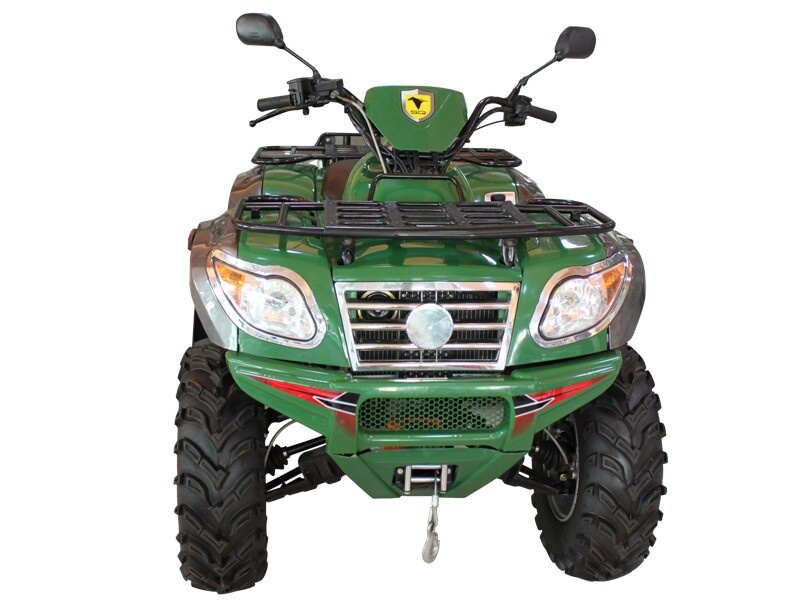

Our ATV SQ500ST-2 designed with the latest technology is suitable for recreation and competition.
| Model | SQ500ST-2 |
| Overall dimension(L*W*H) | 2085*1200*1274mm |
| Fuel Type | unleaded petrol above 90 # |
| Wheelbase | 1400mm |
| Max Load | 570 kgs |
| Curb Weight | 460kgs |
| The Max Speed | ≥90km / h |
| Brake mode(front/rear) | drum after the former disc |
| Brake Control Method (front / rear) | hand / foot movement |
| Ignition mode | C.D.I |
| Engine Type | Water-cooled 500CC, single-cylinder,four-stroke; |
| Engine Mode | SQ500 |
| Engine Displacement | 498ml |
| Engine Max Power/Corresponding Speed | 19.6kw (4500r/min±5%) kw / r / min |
| Engine rated power/Corresponding Speed | 16kw (4500r/min±5%) kw / r / min |
| Max Engine Torque \Corresponding Rotational Speed | 39N.m (2700~3000r/min±5%) nm / r / min |
| Compression Ratio: | 8.6:1 |
| The Lowest fuel Consumption Rate | > 329 g / kw/h |
| Clutch Type | Single-plate, wet spring |
| Starting Way | Electric start pull start |
| Oil Grade | SF 15W/40 |
| Petrol tank capacity | 13L |
| Battery Specifications | 12V36Ah |
| Transmission Output Mode: | shaft drive |
| Stalls | 5 files. 2 forward, one back, a neutral gear, a parking stall |
| Idle Speed | 1500±150 r / min |
| Drive Mode | Four Drivers |
| Max Climbing Degree | 30 degrees |
| Container loading(20FT/40FT/40HQ): | 4/8/12 |
In terms of enthusiasm, continuity and dedication, Jinhua Zhenqi Motion Apparatus Co., Ltd is one of the most representative modern brands of the Southeast Asia sports motion apparatus scene, to the point that the root of the factory settled in Zhejiang Province, China, During its developing years, SQ has tried to furnish itsself into a professional involver in developing, manufacturing and marketing various entertainment vehicles, go-karts, all-terrain vehicles, UTV, jetmotor, dune buggy, motor vehicles, F1and tractors, as well SA providing sincere service.
Our manufacturing plant covers an area of 140, 000 square meters. Jinhua Zhenqi Motion Apparatus Co., Ltd is consisted of dedicated R&D and technical support teams with over &years experience in the motor vehicle industry. Zhenqi Motion Apparatus Co., Ltd was born in2002, thanks to the passionate initiative of great mechanical craftsmen and the founder's passion for local motion apparatus industry, creating a chain of production of motion apparatus.
What LED Jinhua Zhenqi Motion Apparatus Co., Ltd to its steady development the most is the non-stop technological development in accordance with the ever-improving quality control of each component. Two fundamental sapects allowed the factory to do the qualitative leap, guaraneeing the constant planning and productive development process: The employment of a highly qualified staff and the detailed requirements of each production step.
What's more, our many years of experience and technological innovation provide us a competitive advantage in the motor vehicle indury. Jinhua Zhenqi Motion Apparatus Co., Ltd is ISO9001 certified and earns ful product line. ATV's and Go-Karts have earned CE and EEC/EPA approval in Europe and the United States with proven market success by providing quality products to all of our customers.
The factory is running its business towards a modern management, skillfully coupling the numberless sporting victories gained so far with the perfect company administration.
Our manufacturing plant covers an area of 140, 000 square meters. Jinhua Zhenqi Motion Apparatus Co., Ltd is consisted of dedicated R&D and technical support teams with over &years experience in the motor vehicle industry. Zhenqi Motion Apparatus Co., Ltd was born in2002, thanks to the passionate initiative of great mechanical craftsmen and the founder's passion for local motion apparatus industry, creating a chain of production of motion apparatus.
What LED Jinhua Zhenqi Motion Apparatus Co., Ltd to its steady development the most is the non-stop technological development in accordance with the ever-improving quality control of each component. Two fundamental sapects allowed the factory to do the qualitative leap, guaraneeing the constant planning and productive development process: The employment of a highly qualified staff and the detailed requirements of each production step.
What's more, our many years of experience and technological innovation provide us a competitive advantage in the motor vehicle indury. Jinhua Zhenqi Motion Apparatus Co., Ltd is ISO9001 certified and earns ful product line. ATV's and Go-Karts have earned CE and EEC/EPA approval in Europe and the United States with proven market success by providing quality products to all of our customers.
The factory is running its business towards a modern management, skillfully coupling the numberless sporting victories gained so far with the perfect company administration.
