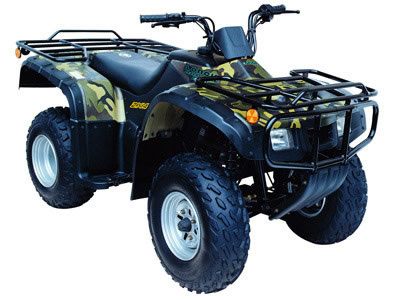

250CC Work ATV

Specifications

Prod Model:	250ST-A

Product Description

Parameter of Engine
Engine Model: 172FMM
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore*Stroke: 53×53 mm ×mm
Ignition: C. D. I.
Lubrication: Pressure/Splash
Max. Power: 13/8000 morethan 150Kw/r/min
Max. Torque: 14. 5/5500morethan150 N. M/r/min
Impression Ratio: 9. 2/1
Starting Type: Electric
Max. Speed: 70Km/H
Oil Consumption: <365g/KwH
Max. Noice: 80dB
Clutch: Manual clutch
Transmission: 5 speed, Rotary
Dimension : 1880. 1050. 1100
Wheel Base: 1180mm
Gross Weight: 245Kg
Dry Weight: 215Kg
Transmission Type Shaft Drive& Reverse
Tyre and Rim: F. 23*7-10/R. 22*10-10
Brake Style: F. Drum/R. Disk
Absorber Style: F. Independent Hanging
Displacement: 233ml
Oiltank Capacity: 8L
Climbing Ability: >30
Max. Load: 200Kg
Packing Vol: 1980*980*900L*W*H mm
Container Capacity: 40HQ 34Unit; 20HQ 12 Unit
