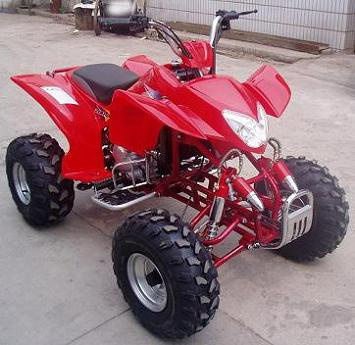

200CC Water Cooled, New Item ATV

Specifications

Prod Model:	200ST-W

Product Description

Parameter of Engine
Engine Model: 163ML
Engine Style: Single Cylinder, Water-cooled, 4-stroke
Bore X Stroke: 63X63. 8(mm Xmm)
Ignition C. D. I.
Lubrication: Pressure/ Splash
Max. Power: 12. 9/8000(Kw/r/min)
Max. Torque: 14. 5/6000(N. M/r/min)
Impression Ratio: 9. 2: 1
Starting Type: Electric
Max. Speed: 55(Km/H)
Oil Consumption: 365(g/Kw. H)
Max. Noise: 80(dB)
Clutch manual
Transmission: 5 speed, Rotary 4 Forward Gear and 1 Reverse Gear
Parameter of Motorcycle
Dimension 1580X980X1100(LXWXH mm)
Wheel Base: 1050(mm)
Gross Weight: 173(Kg)
Dry Weight: 151(Kg)
Transmission Type CHAIN
Tyre and Rim: F.: 19X7-8 / R.: 18*9. 50-8
Brake Style: F. Drum / R. Dish
Absorber Style: F.: Independent Hanging / R.: Middle Absorber
Displacement: 197ml
Oiltank Capacity: 4. 5(L)
Climbing Ability 25
Max. Load 95(Kg)
Packing Vol, 1520X860X780(LXWXH mm)
Container Capacity 40': Unit 20': Unit
