Specifications
Prod Model: |
H1616 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
16" Steel Painted Kids Scooter: |
16" Inches |
Max Capacity: |
>100kg |
Kind: |
Single |
Height Adjustment: |
Height Adjustment |
Color: |
White |
Wheels: |
2 |
Age: |
Children |
Body Material: |
Alu+ Iron |
Wheel Material: |
Metal |
Certification: |
CE |
Condition: |
New |
Product Description

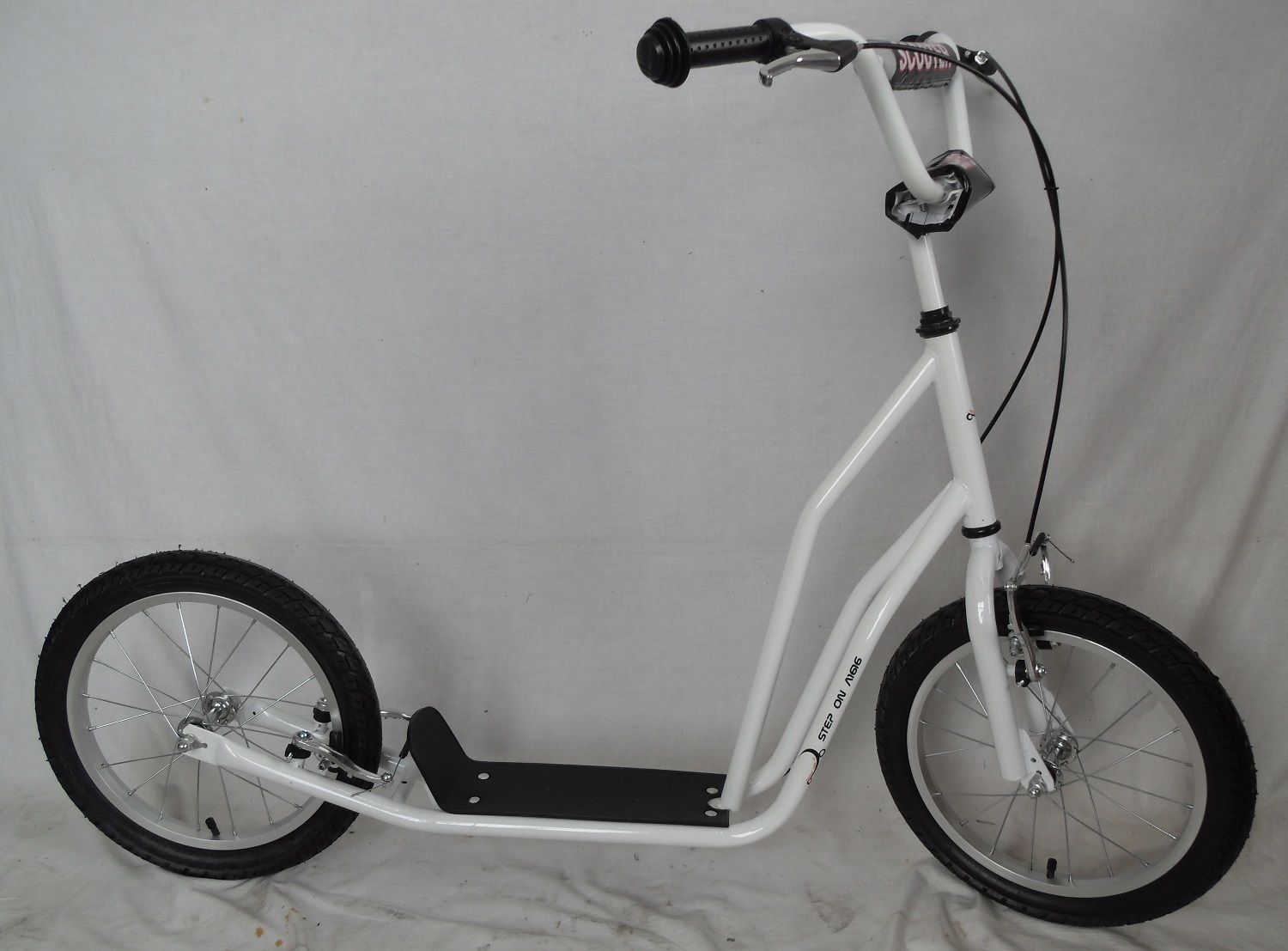

Model No.: H1616
Description:
SPECIFICATION FOR SCOOTER (H1616)
1. Frame: Steel frame, H/T: 30*34*200mm, T/T: 28mm, D/T: 28mm, TIG welding, end: 3/8"
2. Fork: 16"BMX, steel, 1-1/8" blades, stem: 25.4*22.2*231*95mm
3. Front Brake: V-Brake arm shoes: 60L
4. Rear Brake: V-Brake arm shoes: 60L
5. Brake Lever: 2.5F lever & clamp, plastic
6. Brake Cable: Only 2P
7. Handlebar: Steel, BMX U style W/crossbar W: 620mm R: 180mm
8. H/Stem: Four bolts bird handlebar w/stem D: 22.2, L: 185
9. Grips: PVC mushroom, L: 110mm
10. Pad Set: PVC 2PCS for handlebar and stem with customer's design
11. Rims: Alloy front 16"*1.75"*20H, rear 16"*1.75"*20H
12. Front Hub: Steel 3/8"*20H*14G*93W*125mm
13. Rear Hub: Steel 3/8"*20H*14G*93W*125mm
14. Spokes: Steel 14G w/steel nipple
15. Tires: Front 16"-1/2"*2-1/4", rear 16"-1/2"*2-1/4", rubber tires
16. Tube: Front 16"*1.75", rear 16"*1.75", A/V tube
17. H/Parts: Steel set of 8PCS
18. Footplate: Plastic 260mm*50mm, BK
19. Stand: 16" steel 3.0T H: 115mm
20. Mudguard: Nil
21. Bell: Nil
22. Carton: 5-PLY for export yellow
