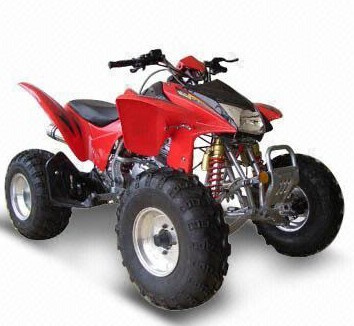

Home Zhejiang Sun Star Scooter Co., Ltd. XY ATV (250B)
Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Certification: | EPA |
| Transmission System: | Chain Drive |
| Engine Type: | 4 Stroke |
| Structure: | Two Side Doors |
| Transmission Type: | Automatic |
| Displacement: | 250CC |
Product Description
Complete Specifications:1. Engine type: 250CC 4 stroke, Air Cooled. (Brand: ZongShen)
2. Bore and stroke 67X65
3. Compression rating: 9.2: 1
4. Max torque: 15Nm/5500rpm, 17.5Nm/5000rpm
5. Max power: 10kw/7500rpm, 13.5kw/7500rpm
6. Ignition type: CDI
7. Transmission: Automatic/manual clutch, 4-speed, reverse gear, chain
8. Brake (Front/Rear): Disc /Disc
9. Starting system: Electric start
10. Battery spec: 12V, 9AH
11. Front suspension details: Double A x swing arm,: Air chamber shock absorbers
12. Rear suspension details: Inner ballonet absorber
13. Front tire spec: 23 x 7 - 10
14. Rear tires spec: 22 x 10 - 10
15. Vehicle dimensions: 1880 x 1140 x 1120mm
16. Wheel base: 1260mm
17. Seat height from ground: 830mm
18. Ground clearance: 120mm
19. Load capacity: 155kg
20. Fuel tank capacity: 9.8L
21. Gross weight in carton: 220kg
22. Net weight: 180kg
23. Packing size: 1680 x 1160 x 870mm
Conveyance:
Qty/20' GP: 14 units
Qty/40' GP: 28 units
Qty/40' HQ: 42 units
