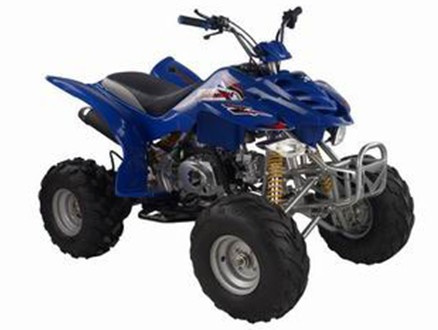

Home Zhejiang Sun Star Scooter Co., Ltd. XY-ATV (110A)
Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Certification: | EPA |
| Transmission System: | Chain Drive |
| Engine Type: | 4 Stroke |
| Structure: | Two Side Doors |
| Transmission Type: | Automatic |
| Displacement: | 110CC |
Product Description
Complete Specifications:1) Engine type: 110CC/125CC, air-cooled, single cylinder, 4 stroke
2) Clutch mode: Three gears forward and one backward, automatic clutch
3) With inner reverse gear
4) Max. Load capacity: 100kg
5) Max. Speed: 50km/h
6) Transmission: Chain
7) Start system: Electric start
8) Brake: Front drum and rear hydraulic disc brake
9) Suspension: Front and rear hydraulic suspension
10) Front tire: 19 x 7-8
11) Rear tire: 18x 9.5-8
12) Ignition type: CDI
13) Fuel tank capacity: 3.0L
14) Battery: 12V x 7Ah
Outer packing:
Carton and steel frame
N. W.: 124 kg
G. W.: 146 kg
Carton size: 1, 465 x 860 x 780mm
Conveyance:
Qty/20' FCL: 31PCS Qty/40' FCL: 64PCS Qty/40' HQ: 66PCS
