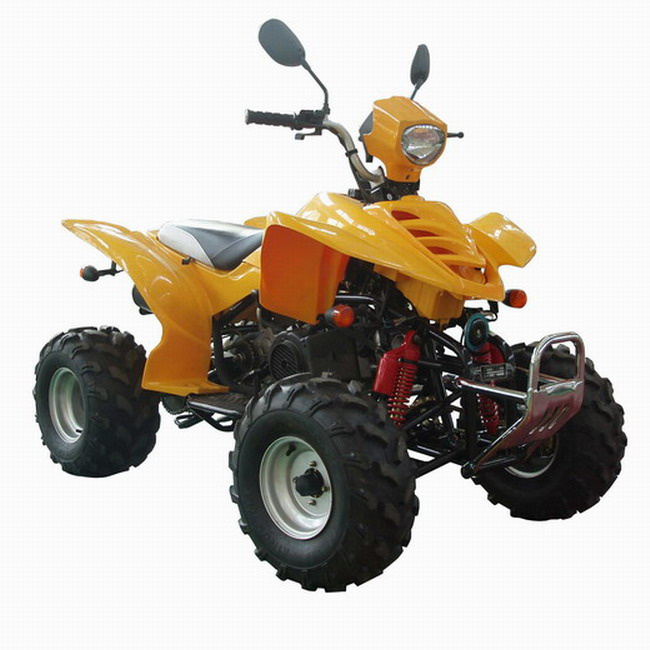

Water-Cooling EEC ATV (JY200ST)

Specifications

Prod Model:	JY200ST

Product Description

Dimension (mm) (Length*Width*Height): 1800*1120*1130
Engine Type: Single-cylinder, water-cooled, 4-stroke
Displacement(ml): 197
Power(kw/r/min): 10. 3Kw/7500r/min
Maximum Torque(N. M. /r/min): 15N. M/6000r/min
Starting: Electric
Max. Speed(km/h): ≥75
Transmission: Chain
Brake Type(Front/Rear) : Drum/Disc
Tyre size(Front / Rear): F: 21*7-10; R: 20*10-10
Ignition mode: CDI
Wheel base(mm): 1150
Fuel tank capacity(L): 4
Battery: 12V9Ah
Net weight(kgs): 155
Max Loading (kgs): 150
20' GP: 20PCS
40' GP: 44PCS
40' HQ: 66PCS
