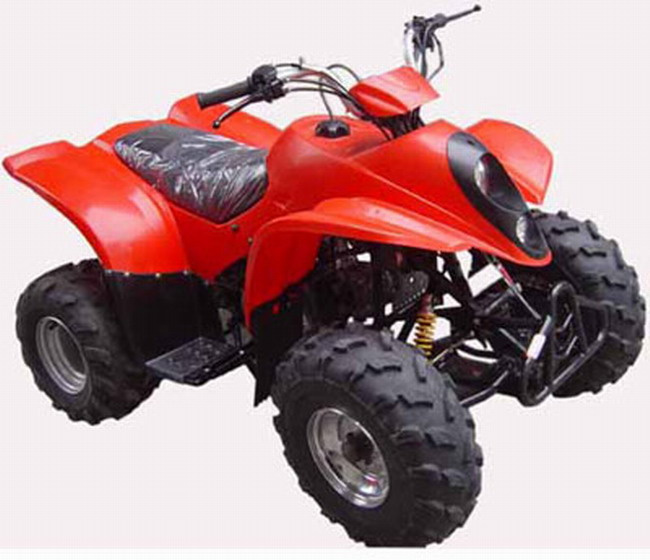

Sports EEC ATVs (JY110ST-8)

Specifications

Prod Model:	JY110ST-8

Product Description

Engine Type:4-Strokes,Air Cooled, with reverse gear
Cylinder Arrangement:Single Cylinder
Transmission System:Shaft Drive
Bore x Stroke (mm):52.4 * 49.5
Piston Displacement (cc):107
Compression Ratio:9.1:1
Maximum Power (kw/r/min):5.5/8000
Maximum Torque (N.m./rpm):6.5/5750
Starter System:Electric Starter
Lubrication:Auto
Transmission:3 Speed, Semi Automatic
Overall Length (mm):1760
Overall Width (mm):950
Overall Hight (mm):830
Wheel Base (mm):1040
Seat Hight (mm):700
Min. Turning Radius (mm):2400
Ground Clearance (mm):100
Rider Capacity :1Person
Dry Weight (kg):130
Brake (Front/Rear):Drum/drum
Tyre, Front:19*7-8/2.9Psi
Tyre, Rear:18*9.5-8/2.9psi
Ignition Type:C.D.I.
Fuel Tank Capacity (L):6
Engine Oil Capacity (L):0.95
Gear Oil Capacity (L):0.12
Front Suspension :swing Arm
Rear Suspension:Monoshock Swing Arm
Parking Brake:Mechanical Lock
Max. Load Capacity (kg):95
Max. Speed:50
Battery:12V-9Ah
