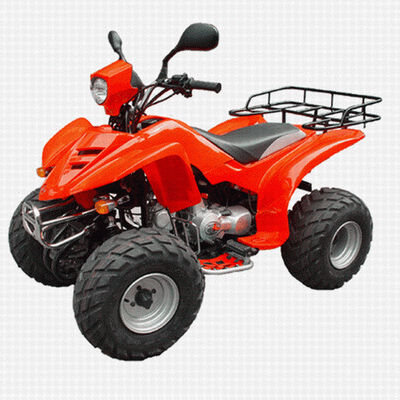

Sports EEC ATV (JY110ST-ER)

Specifications

Prod Model:	JY110ST-ER

Product Description

Engine Type:4-Strokes.AirCooled 3 Speeds
Transmission System:Shaft Drive
Bore x Stroke(mm):52.4*49.5
Piston Displacement(ml):107
Maximum Power(kw/r/min):5.5/8000
Maximum Torque(N.m./r/min):6.5/5750
Starting System:Electric Sarter
Transmission:3-Speed.+Reverse Semi Autometic
Seat Height(mm):670
Min Turning Radius(mm):2400
Ground Clearance:100
Brake(Front/Rear):Drum/Drum
Tyre,Front:19 *7-8/2.9Psi
Tyre,Rear:18 * 9.5-8/2.9Psi
Ignition Type:C.D.I
Fuel Tank Capacity(L):7.8
Front Suspension:Single A-arm
Rear Suspension:Monoshock Swing Arm
Parking Brake:Mechanical Lock
Battery:12V-9Ah
loading:40'=66boxes.20'=30
Max Load Capacity(kg):95
Engine Oil Capacity(L):0.95
Gear Oil Capacity(L):0.12
Dry Weight(kg):130
Rider Capacity:1 Person
Rear Track(mm):710
Front Track(mm):725
Wheel Base:1040
Overall Height(mm):950
Lubrication:Auto
Overall Length(mm):1540
Overall Width(mm):860
Compression Ration:9.1:1
Cylinder Arrangement:Single Cylinder
