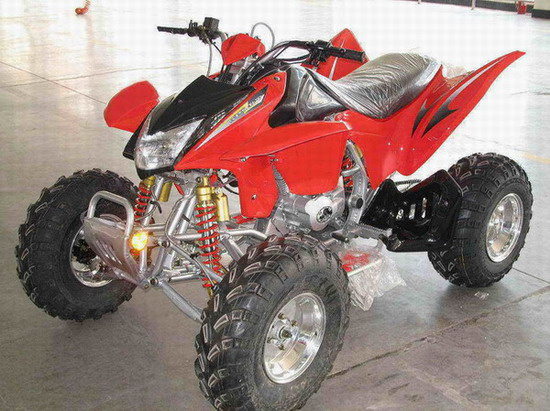

Air-cooling EEC ATVs (JY250ST)

Specifications

Prod Model:	JY250ST

Product Description

Dimension (mm) (Length*Width*Height):1850*980*1080
Engine Type:Single-cylinder,air-cooled,4-stroke
Displacement(ml):223
Power(kw/r/min):11/7500r/min
Maximum Torque(N.m./r/min):17/6000r/min
Starting:Electric
Max.speed(km/h):≥60
Transmission:Chain
Brake Type(Front/Rear) :Drum/Disc
Tyre size(Front / Rear): F:19*7-8 R:18*9.50-8
Ignition mode:CDI
Wheel base(mm):1150
Fuel tank capacity(L):4
Battery :12V9Ah
Net weight(kgs):150
Max Loading (kgs):150
20' GP:20PCS
40' GP:44PCS
40' HQ:66PCS
