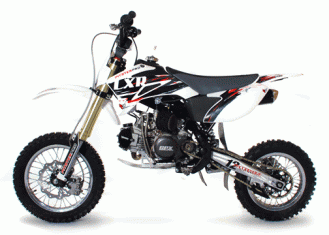

Home Shuopu Science and Technology Development Co., Ltd. Pitbike-Pitsterpro LXR (160R TWELVE)
| Prod Model: | 160R TWELVE |
|---|
Product Description
CHASSIS AND DIMENSIONSColor: White
Curb Weight: 143 lbs
Frame: Central Double Cradle Chromo W/ Tri Point Mounting, removable footpeg Design, Progressive Link
Fuel Capacity: 3.80 L
Ground Clearance: 10"
Overall Length: 65.5"
Overall Width: 31"
Seat Height: 30.5"
Subframe: Chromo Removable W/ Integrated Grab Handle
Swingarm: Progressive Link Tapered "D" Section Stamped Alloy W/ CNC Cross Section For Increased Rigidity, CNC Axle Blocks, Taper Axle
Wheelbase: 47.75" Axle to Axle
WHEELS AND TIRES
Front Tire: 2.75 x 14"
Front Wheel: 1.40 x 14"
Rear Tire: 3.0 x 12"
Rear Wheel: 1.85 x 12"
HYRAULIC DISC BRAKES
Front Brake: 220mm W-style Rotor W/ Floating Caliper
Rear Brake: 190mm W-style Rotor W/ Floating Caliper
Rear Pedal: Over the peg steel
SUSPENSION
Front: GPX Moto forks w/ Separate Comp and Reb Adjustment
Rear: Pitster Progressive Link Swingarm w/ high and low speed Comp. And Rebound Adjustment, Adjustable Spring Preload
Travel: 8" Front/ 9.8"Rear
ENGINE
Bore and Stroke: 60mm x 57mm
Carburetor: 26mm
Clutch: 5 plate wet clutch
Compression Ratio: 10.2: 1
Cooling: Twin Oil Cooler and Air Cooling, Increased Oil Capacity
Engine: Four stroke GPX Moto 160CC SOHC air cooled
Gearing: 420/ 16T x 39T
Ignition: Outer rotor with lighting coil
Starter: Kick
Transmission: Close Ratio 4 Speed Manuel Clutch
