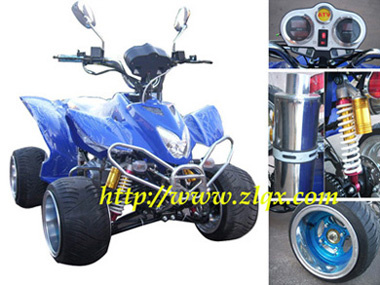

New Model ATV (ATV-027)

Specifications

Prod Model:	ATV-027

Product Description

New model; High quality
Feature parts: Alloy rims, alloy exhaust pipe, alloy hand grips. Luxury speedometer, mirror and shock absorber. high quality tires.

1) Engine type: 110cc-250cc
2) Max. speed (km/h): 60
3) Transmission system: chain drive
4) Maximum power: 12.5/8000
5) Maximum torque (Nm/rpm): 15.0/600
6) Starting system: electric start
7) Seat height (mm): 720
8) Ground clearance (mm): 110
9) Brake (front/rear): disk/disk
10)Tires: 10-inch
11) Ignition type: CDI
12) Fuel tank capacity (L): 4.5
13) Fuel no.: RQ 90
14) Lubrication type: pressure, splash
15) Idling/turning speed (rpm): 1500
16) Front suspension: wishbone suspension
17) Rear suspension: mono shock swing- arm
18) Climb capability: 30
19) Engine oil capacity (L): 0.9
20) Parking brake: mechanical lock
20) Battery: 12V/9Ah
21) Rider capacity: 1 person
22) Rear track (mm): 760
23) Front track (mm): 810
24) Compression ratio: 10.16: 1
25) Cylinder arrangement: single cylinder
26) Lubrication: press splash
Conveyance:
Qty/20' FCL: 30units
Qty/40' HQ: 66units
