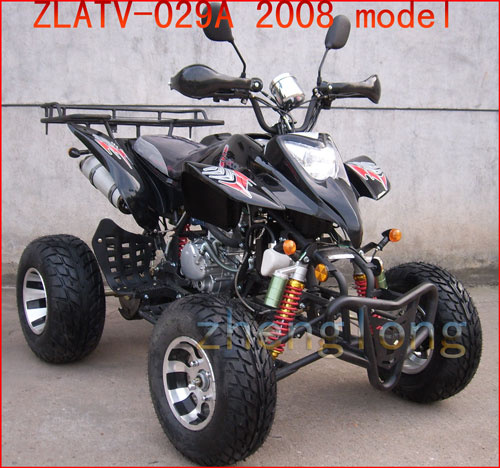

150cc/200cc/250cc ATV / Quad (ZLATV-029A)

Specifications

Prod Model:	ZLATV-029A

Product Description

New Model ATV (ATV-029)
200cc water-cooled or 250cc air-cooled /water-cooled engine, Chain drive with speedometer.
Aluminium alloy rims, front and rear integrative hydraulic disc brakes. Front and rear outer air-cell shock absorbers

1) Dimensions: 1, 960 x 1, 010 x 1, 120mm
2) G. W. /N. W.: 220kg/200kg
3) Maximum load: 145kg
4) Bore x stroke: 71 x 58mm
5) Rated power: 10kw/7, 000-8, 000rpm
6) Maximum torque: 15N. m/5, 500-6, 500rpm
7) Maximum speed (km/h): 65km/h
8) Minimum ground clearance (mm): 115
9) Transmission: constant mesh, 5 speed
10) Starting: electric
11) Climb ability: 25 degree
12) Tire: AT23x 7-10/F, AT23 x 10-10/R
13) Fuel tank (ml): 12L
14) Brake(front/rear): Disc brake
15) Conveyance:
Qty/20' FCL: 12pcs
Qty/40'FCL: 24pcs
Qty/40'HQ: 36pcs
