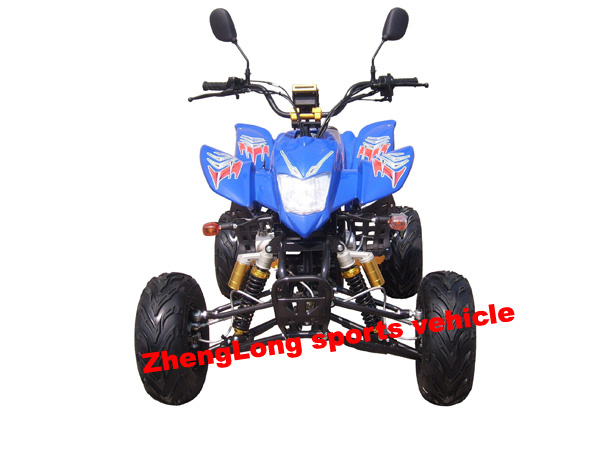

200cc/250cc ATV (ZLATV-033)

Specifications

Prod Model:	ZLATV-033

Product Description

Features:
1) Dimensions(LxWxH):1800x1120x1130mm
2) Wheelbase:1150mm
3) Engine type:200CC,single cylinder,Water-cooled,4-stroke
4) Start mode:electric
5) Power:9.5kW/7,500rpm
6) Max.torque:12.1N.m/6,500rpm
7) Max.speed:≥80km/h
8) Min.ground clearance:120mm
9) G.W/N.W:150kgs/138kgs
10) Transmission mode:chain
11) Break type(F/R):disc/disc
12) Power source:12V,9A
13) Climbing degree:20 degrees
14) Fuel tank capacity:5.5L
15) Front hanging:double arm-swing
16) Rear hanging:integral
17) Tyres: Front:AT 19x7-8/2.9psi
Rear:AT 18x9.5-8/2.9psi
18) Cylinder size:63.5 x 62.2mm
19) Displacement:197ml
20) Transmission:
4 gears with one reverse gear,manual clutch
21) Seat height:850mm
22) Min.turning radius:2,650mm
23) Parking trig:mechanical lock
24) Ignition mode:CDI
25) Load capacity:150kg
26) Engine oil:0.9L
27) Gas cylinder number:1
28) Max.number of riders:1
29) Lubrication: press splash
30) Compression proportion:9.2:1

Outer packing:
Carton dimensions:1,480 x 850 x 820mm
Conveyance:
Qty/20' GP: 20 units
Qty/40' GP: 44 units
Qty/40' HQ: 66 units
