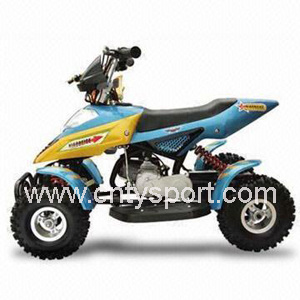

Home Zhejiang Tyco Scooter Manufacture Co., Ltd. New Model 2 Stroke ATV (TY-DB404B)
Specifications
| Prod Model: | TY-DB404B |
|---|
Product Description
Engine: 49cc, single-cylinder, air-cooled and two-strokeOil type: Petrol, 1: 25 engine oil mixing
Tank capacity: 2L
Driving model: Chain
Start system: Pull-start
Tires (front/rear): 4. 10 to 6 inches/13*5. 00 to 6 inches
Brake system (rear): Disc brake (manual)
Suspension: Front/rear suspension
Rated power and rotate speed: 1. 8kW/7, 500rpm
Maximum torque and rotate speed: 3. 5Nm/6, 000rpm
Maximum speed: 50kph
Maximum loading capacity: 95kg
Dimensions (L*W*H): 1, 040*640*710mm
Gross/net weight: 48/42kg
Carton dimensions: 1, 060*630*525mm
Conveyance:
Quantity per 20-foot FCL container: 76 pieces
Quantity per 40-foot FCL container: 160 pieces
Quantity per 40-foot HQ container: 200 pieces
