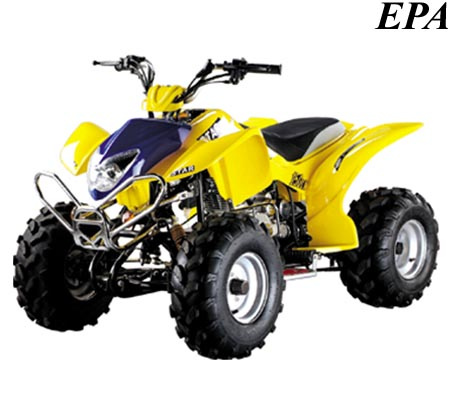

EPA ATV with 150cc Engine (EPA-ATV06)

Specifications

Prod Model:	EPA-ATV06

Product Description

1) Engine: 150cc, 4-stroke, single-cylinder, forced air-cooled
2) Displacement: 150cc
3) Max speed: 70 km/h
4) Bore x stroke: 69 x 53mm
5) Rated power and rotate speed: 10.2kW / 8500r / min
6) Max torque and rotate speed: 13N.m / 7500r / min
7) Compressing ratio: 9.2:1
8) Shaft drive with inside reverse/chain drive with inside reverse
9) Starting system: electric
10) Brake system (front/rear) of shaft drive : drum / drum
Brake system (front/rear) of chain drive : drum / disc
11) Fuel tank: 7.5L
12) Steering angel: 30 degrees
13) Ignition: CDI
15) Tire (Front/Rear): 21 x 8 - 10 / 22 x 11 - 8
16) Dimensions: 1680 x 1030 x 1100mm

Packing:
Net weight: 135kgs
Gross weight: 160kgs
Carton size: 1465X860X780MM
Container: 31pcs/20ft; 65pcs/40; 66pcs/40HQ
