Specifications
| Prod Model: | ATV110S-7 |
|---|
Product Description

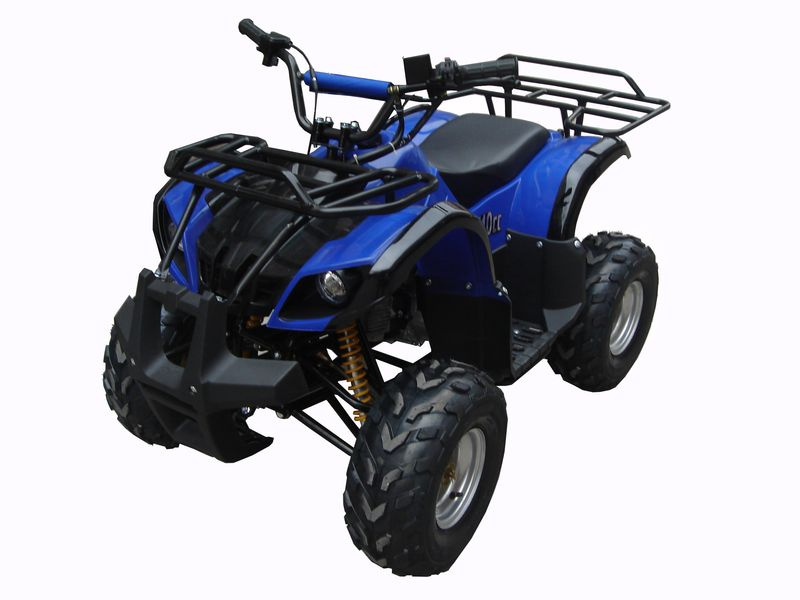

New Bull style MINI ATV/QUADItem Number: ATV110S-7
1. Engine type: 70cc/90cc/110cc, 4-stroke
2. Bore and stroke: 39 x 41.4/47 x 41.4/47 x 49.5/52.4 x 49.5
3. Compression ratio: 8.8: 1
4. Max. Torque: 4.2nm/5, 000rpm, 4.2N. M/5, 000rpm, 5.2N. M/5, 000rpm, 5.5N. M/5, 000rpm
5. Max. Power: 3.0kW/8, 500rpm, 3.0kW/7, 500rpm, 3.3kW/7, 500rpm, 3.6kW/7, 500rpm
6. Ignition: CDI
7. Transmission: Automatic, chain
8. Brake (front/rear): No/disc
9. Start: Electric start
10. Battery spec.: 12V, 4Ah
11. Front suspension details: Double A-swing arms
12. Rear suspension details: Mono shock swing arm
13. Front tire spec.: 16 x 8-7
14. Rear tires spec.: 16 x 8-7
15. Vehicle dimensions: 130 x 70 x 80cm
16. Wheel base: 880mm
17. Seat height from ground: 60cm
18. Ground clearance: 100mm
19. Load capacity: 100kg
20. Fuel tank capacity: 3.2L
21. Gross weight in carton: 105kg
22. Net weight: 86kg
23. Packing size: 131 x 72 x 64cm
Conveyance:
Qty/20' GP: 38pcs
Qty/40' GP: 76pcs
Qty/40' HQ: 108pcs
