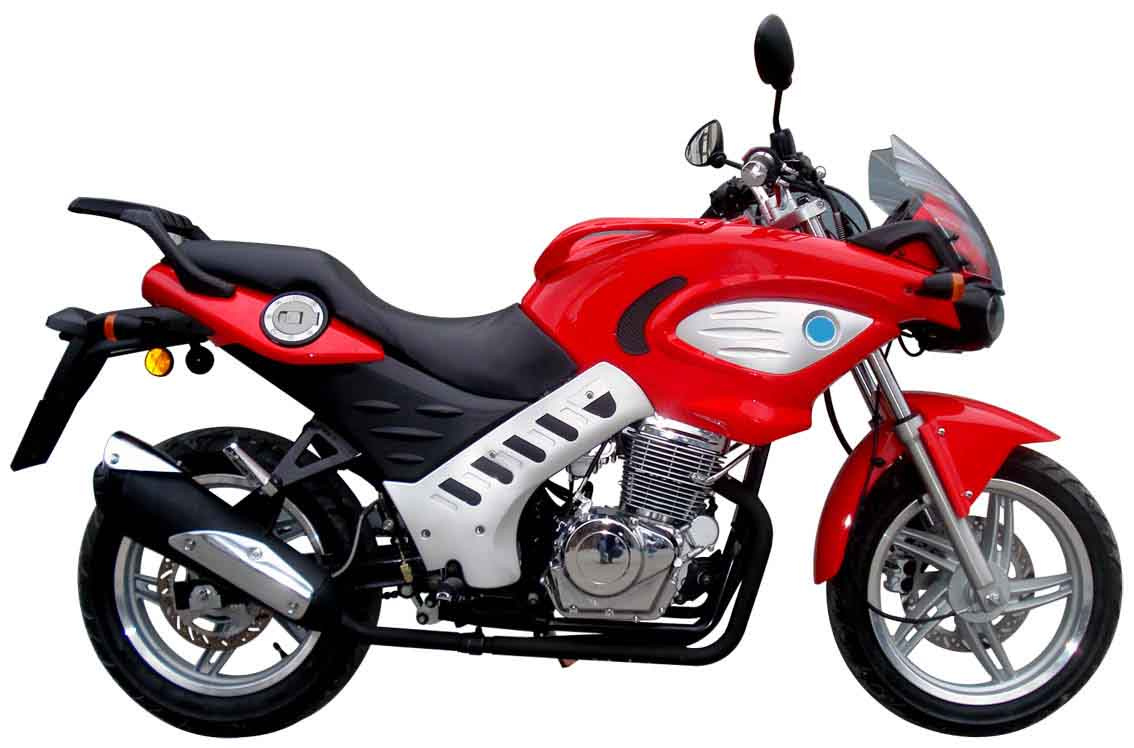

Motorcycle (PM250-1)

Specifications

Prod Model:	PM250-1

Product Description

Dimensions and Weight:
Length x Width x Height: 2, 160 x 770 x 1, 145mm
Wheelbase: 1470mm
Seat Height: 780mm
Ground Clearance: 170mm
Fuel Capacity: 13.5 Liters
Dry Weight: 150kg

Engine:
Engine Type: Air-cooled 4-stroke double cylinders
Engine Displacement: 233 cm³
Bore & Stroke: 53mmx53mm
Compression Ratio: 9.2: 1
Carburetor: PD26JS2
Max. Power Output: 12.8Kw/7800r/min
Max. Torque: 14N. M/7000r/min
Ignition: C. D. I
Starter: Electronic

Transmission:
Gearbox: 5-speed
Final Drive: Chain

Wheels, Suspension and Brakes:
Wheels Front: Aluminums rim 16x MT3.00
Wheels Rear: Aluminums rim 16x MT3.00
Tires Front: 110/70-16
Tires Rear: 140/70-16
Suspension Front: Hydraulic Spring
Suspension Rear: Hydraulic Spring
Brakes Front: Disk brake
Brakes Rear: Disk brake
Battery: YTX9-BS
