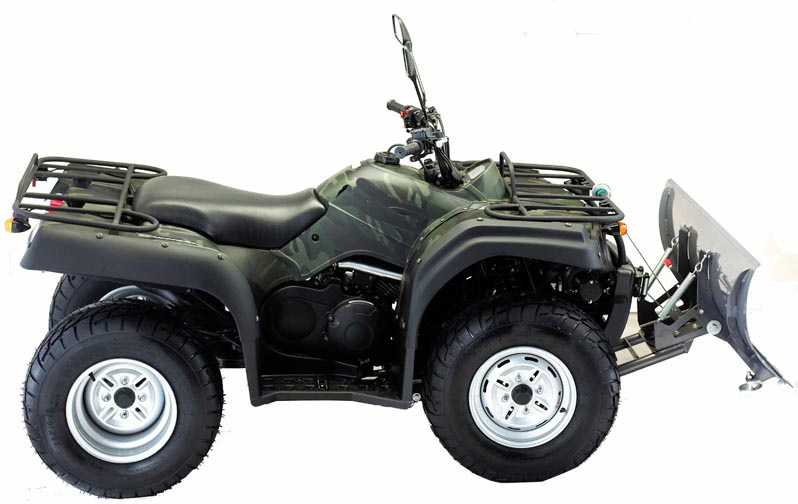

ATV (PA400 ATV)

Specifications

Prod Model:	PA400 ATV

Product Description

400cc water cooled engine, Automatic gearshift (L-H-N-R-P), Front independent double swing arm, front and rear disc brake

Dimensions and Weight
Length x Width x Height: 1, 930 x 1, 045 x 1, 130mm
Wheelbase: 1, 260mm
Seat Height: 827mm
Ground Clearance: 245mm
Fuel Capacity: 15 Liters
Dry Weight: 262kg

Engine
Engine Type: Oil cooled, 4-stroke, single cylinder
Engine Displacement: 387cm³
Bore & Stroke: 83 x 71.6mm
Compression Ratio: 9.5: 1
Carburetion: PD33J
Max. Power Output: 20.5kw at 7, 500rpm
Max. Torque: 19.5N. M at 4, 000rpm
Ignition: C. D. I
Starter: Electronic/pull start

Transmission
Gearbox: F-N-R
Final Drive: Shaft drive

Wheels, Suspension and Brakes
Wheels Front: Aluminums rim 12x6
Wheels Rear: Aluminums rim 12x8
Tires Front: AT25x8-12 radial
Tires Rear: AT25x10-12 radial
Suspension Front: Independent double swing arm
Suspension Rear: Single swing arm
Brakes Front: Dual ventilated hydraulic disc
Brakes Rear: Ventilated hydraulic disc
Battery: YTX20L-BS
