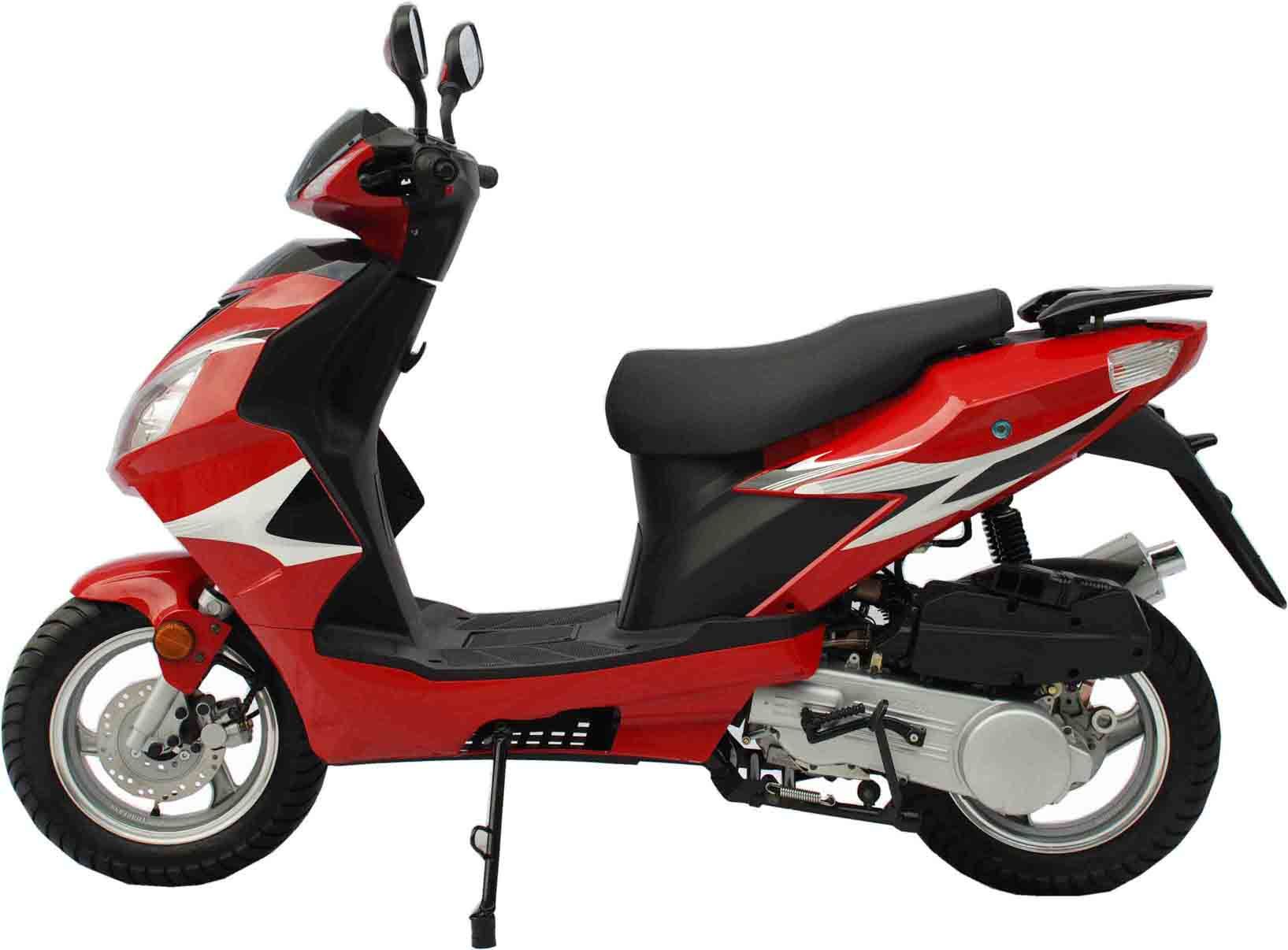

Home Physique Plus (H. K) Ltd. Hybrid Scooter (PS50 Eco)

Hybrid Scooter (PS50 Eco)

Hybrid Scooter (PS50 Eco)
Price: Negotiable
Trade Terms: By Sea
Min Order: 1

Specifications

Prod Model: PS50 Eco

Product Description

Dimensions and Weight:
Length x Width x Height: 1, 860 x 690 x 1, 170mm
Wheelbase: 1, 310mm
Seat Height: 720mm
Ground Clearance: 110mm
Fuel Capacity: 4.5 Liters
Dry Weight: 117kg

Engine:
Engine Type: Air Cooled, 4Stroke Single Cylinder gasoline engine + 800W/brushless electric generator
Engine Displacement: 49cm³
Bore & Stroke: 39.0x 41.5mm
Compression Ratio: 10.3: 1
Carburetor: PD18J
Max. Power Output: 2.43KW at 7, 500 rpm; Electronic engine: 800W
Max. Torque: 3.24Nm at 6, 000 rpm
Ignition: C. D. I
Starter: Kick and Electric
Minimum fuel consumption (g/KW h): 350 at 7, 500rpm

Transmission:
Gearbox: Automatic
Final Drive: Draft

Wheels, Suspension and Brakes:
Wheels Front: Aluminums rim
Wheels Rear: Steel rim
Tires Front: 120/70-12
Tires Rear: 130/70-12
Suspension Front: Telescopic, oil damped
Suspension Rear: Telescopic, oil damped:
Brakes Front: Disc brake
Brakes Rear: Drum brake
Battery: 48v20Ah
Empty battery charging time: 4-5hours
Charging Method: By driving the scooter
Distance of travel driven by only battery: 65km(full battery)
