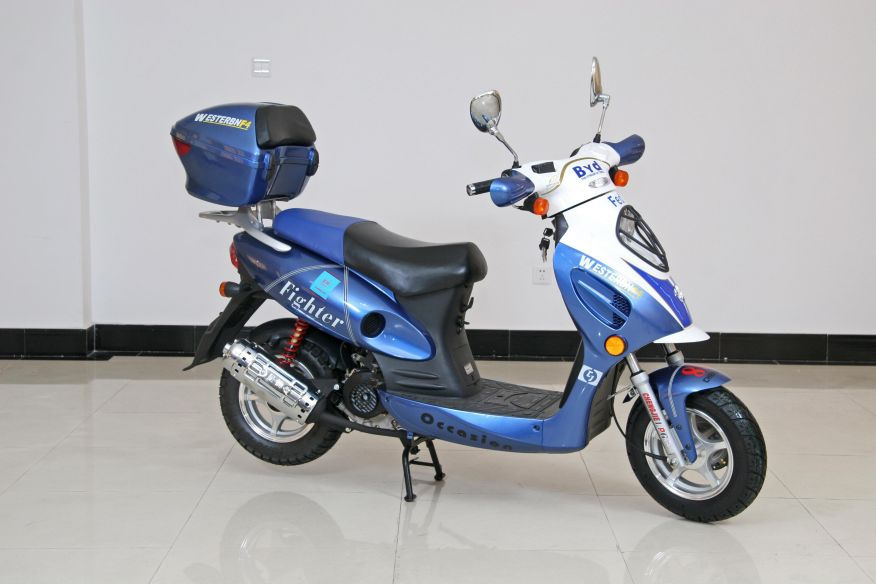

LPG Scooter (FQ125-5)

Specifications

Prod Model:	FQ125-5

Product Description

Dimensions and weight
Overall length 1960mm
Overall width 680mm
Overall height 1150mm
Wheelbase 1350mm
Minimum over ground space 140mm
Net weight 110kg
Engine Type mono cylinder, 4 strokes, reinforced wind cooling
Cylinder number 1
Concentration ration 10.5: 1

Cylinder diameter and stroke 52.4*57.8mm
Cylinder working capacity 124.6ml
Clutch dry, automatic centrifugal
Speed change mode stepless speed change
Deceleration ratio 8.6
Ignition mode CDI
Minimum stable rotation speed 1900r/min
Nominated power rate and corresponding rotation speed 5.4/7000(kw/r/min)
Maximum torque and corresponding rotation speed 7.8/6000(N. M/r/min)
Startup mode Electric/ foot

Brake distance ≤6m(vehicle speed 30km/h)
Maximum load 150kg
Maximum speed ≤65km
Creeping capability ≤5°
Economical gas consumption ≤4L/100km
Minimum turning radius 48°
Turing angle(left, right) 3m
Battery 7AH/12V
Headlight 35W/35W/12V
Turning indicator 10W/12V
Taillight 5W/15W/12V
Instrument light 3W/12V
Horn 12V/1.5A
Fuse 6A/50A
Gas Vehicle use LPG
Gas tank capacity 5L
Gas tank filling limit 4L
Engine machine oil Summer 15W/40
Winter 5W/30
Capacity 800ml
Gearbox machine oil 20# machine oil
Capacity 100ml
Tyre specs 3.50-10
Tyre air pressure (front/ rear) 200/225
Braking mode (front/ rear) disc/ drum
Braking operation mode (front/ rear) Hand/ foot
Felly type (front/ rear) Aluminum alloy
