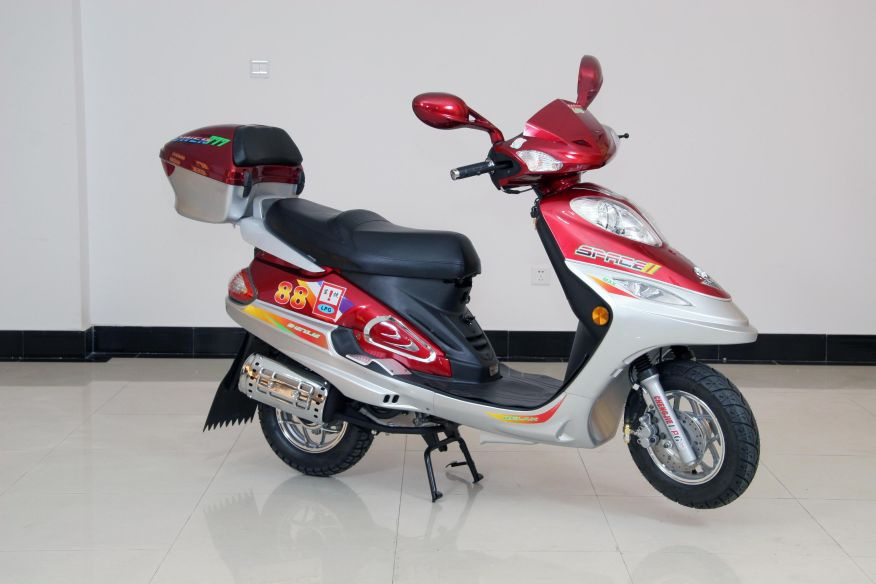

Home Shanghai Fuquan Automobile Manufactory Co., Ltd. LPG Scooter (FQ125-2)
| Prod Model: | FQ125-2 |
|---|
Product Description
We r the profession LPG scooter manufacturer in china.If u r looking for lpg scooter, we r your best choice.Except for excellent quality, we can supply u low price.Dont hesitate to contact me.As followed is basic speciality:
Dimensions and weight
Overall length 1960mm
Overall width 680mm
Overall height 1150mm
Wheelbase 1350mm
Minimum over ground space 140mm
Net weight 110kg
Engine Type mono cylinder, 4 strokes, reinforced wind cooling
Cylinder number 1
Concentration ration 10.5:1
Cylinder diameter and stroke 52.4*57.8mm
Cylinder working capacity 124.6ml
Clutch dry, automatic centrifugal
Speed change mode stepless speed change
Deceleration ratio 8.6
Ignition mode CDI
Minimum stable rotation speed 1900r/min
Nominated power rate and corresponding rotation speed 5.4/7000(kw/r/min)
Maximum torque and corresponding rotation speed 7.8/6000(N.M/r/min)
Startup mode Electric/ foot
Brake distance ≤6m(vehicle speed 30km/h)
Maximum load 150kg
Maximum speed ≤65km
Creeping capability ≤5°
Economical gas consumption ≤4L/100km
Minimum turning radius 48°
Turing angle(left, right) 3m
Battery 7AH/12V
Headlight 35W/35W/12V
Turning indicator 10W/12V
Taillight 5W/15W/12V
Instrument light 3W/12V
Horn 12V/1.5A
Fuse 6A/50A
Gas Vehicle use LPG
Gas tank capacity 5L
Gas tank filling limit 4L
Engine machine oil Summer 15W/40
Winter 5W/30
Capacity 800ml
Gearbox machine oil 20# machine oil
Capacity 100ml
Tyre specs 3.50-10
Tyre air pressure (front/ rear) 200/225
Braking mode (front/ rear) disc/ drum
Braking operation mode (front/ rear) Hand/ foot
Felly type (front/ rear) Aluminum alloy
We boast a long history of producing engines, two-wheel gas (natural gas and LPG) motorcycles, snow scooters and non-road use all-condition scooters (sand beach scooters and entertainment & sports scooters). All our products enjoy great uniqueness and are conferred with state patents, which are renowned for well situated pricing and extremely reliable quality. For a long time, the majority of our products are exported to more than 30 countries and regions such as United States, Canada, Russia and other European countries, South Africa and Australia.
Over years of research and exploration, we have gained a complete set of unique production processes and quality management expertise, and have established standardized and full-range management system in calibration and quality control. In production lines, we have applied computers in site management, products design and testing, and we have been provided with the conditions and ideologies for scientific, standardized and serial production. More ever, we have formed an outstanding technology faculty and a highly qualified team that have long time experience in vehicles production, which guarantees the quality reliability of our products.
We enjoy a land area of 33330 square meters and 23000 square meters of building area. Currently, we have 218 employees and our annual production reaches more than 30 thousand vehicles of various models that bring the production value to 180 million RMB.
Over years of research and exploration, we have gained a complete set of unique production processes and quality management expertise, and have established standardized and full-range management system in calibration and quality control. In production lines, we have applied computers in site management, products design and testing, and we have been provided with the conditions and ideologies for scientific, standardized and serial production. More ever, we have formed an outstanding technology faculty and a highly qualified team that have long time experience in vehicles production, which guarantees the quality reliability of our products.
We enjoy a land area of 33330 square meters and 23000 square meters of building area. Currently, we have 218 employees and our annual production reaches more than 30 thousand vehicles of various models that bring the production value to 180 million RMB.
