Home OptimumNano Energy Co., Ltd. LiFePO4 36V 10ah Battery for 200W-500W E-Bike

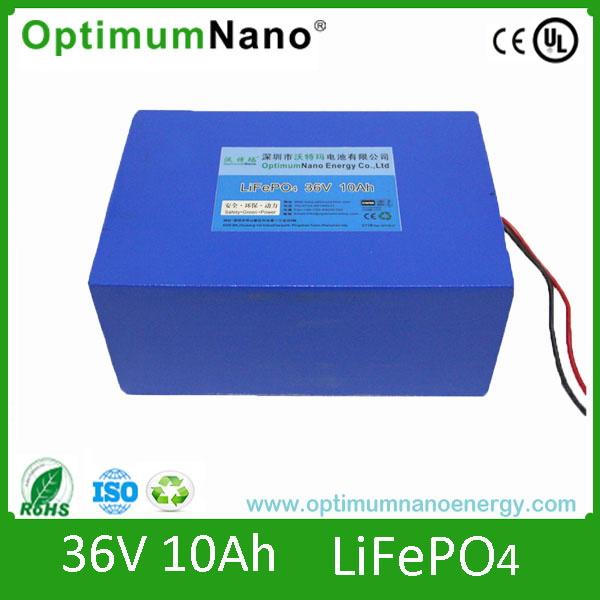

LiFePO4 36V 10ah Battery for 200W-500W E-Bike
| Price: | US $ 1-1000/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | OPT-036010 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lead Time: | 15-25days |
| Weight: | About 4kg |
| Warranty: | 2 Year |
| Life Cycles: | 2000 Times |
| Certificate: | UL ,CE ,RoHS ,ISO9001 ,Ts16949 |
| Advantages: | Safety,Long Life Cycles,High Energy Density |
| Certification: | ISO9001 |
| Rated Capacity: | 10 |
| Working Life: | 2000cycles |
| Color: | Bule |
Product Description
Product description:
1.Standard capacity(0.2C5A) 10Ah
2.Rated voltage 36V
3.Max. Charge voltage 43.8V
4.Cut-off voltage 30.0V
5.Standard charge current 5A
6.Charging Time 3hours
7.Max discharge current 30A
8.Battery dimension 154*210*82mm
9.Weight(Approx, including case) About 4.5kg
Product Feature:
1. Longer life, High safety.
2. Light weight, smaller size.
3. High power.
4. High-temperature working capability.
5. Steady discharge and charge performance.
6. Low self discharge, no memory effect.
7. Green products, environmental friendly.
| Comparison between LiFePO4 battery and Lead-Acid battery: | ||
| BatteryIngredients | LiFePO4 Battery | Lead-Acid |
| Safety & Environmental Concern | Safest; no explosion; no smoke; no fire under very bad working condition; most environmentally friendly; non-toxic; no rare metal, fire resistant, easily disposed of. | safety is acceptable; heavy pollution to water and soil; breaking ecological balance; threatening people' s health especially for Children; hard to dispose of; high re-use cost. |
| Life Cycle | Best, up to 1000 times under 80% DOD(theoretically 2000 times) | Very short life cycle, about 150 times under 100% DOD; maintenance needed very often. |
| Long term Cost | Most economical | Cost of whole lifetime is higher than LiFePO4 |
| Thermal Performance | Excellent - Can work normally under -20° C~70° C | The capacity decays quickly if the temperature is higher than 50° C |
Company Name: OptimumNano Energy Co., Ltd
Name of Exhibition: The China Sourcing Fair
Address: Hong Kong Asia Exhibition Hall
Booth No: At at 9B05
Dates: Oct 11-14, 2015(4 Days)
In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.
In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future
In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.
In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".
In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.
In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.
In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.
In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry
OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.
After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
Name of Exhibition: The China Sourcing Fair
Address: Hong Kong Asia Exhibition Hall
Booth No: At at 9B05
Dates: Oct 11-14, 2015(4 Days)
In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.
In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future
In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.
In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".
In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.
In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.
In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.
In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry
OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.
After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
