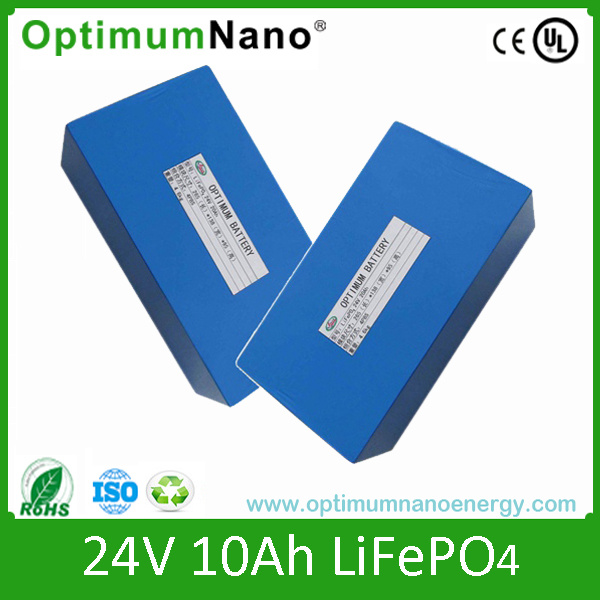

Rechargeable 24V 10ah LiFePO4 Battery for E-Bike
| Price: | US $ 1-1000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union |
| Prod Model: | OPT-2410 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Norminal Capacity: | 10ah |
| Size: | for Your Remands |
| Normal Discharge And Charge Rate: | 0.2c |
| Warranty: | 24months |
| Discharge Rated: | Less Than 3c |
| Energy / Weight: | 120wh/Kg |
| Energy / Volume: | 310wh / L |
| Cycle Life: | at Least 2000 Times At100%Dod |
| Shippment: | TNT,UPS,DHL,FedEx,by Sea,by Air |
| Delivery Time: | Within 25 Working Days |
| Certification: | RoHS |
| Rated Capacity: | for Your Remands |
Product Description
1. The biggest LiFePO4 battery manufacturer in China with CE, UL, RoHSSGS, TS/16949 and ISO9001-2008 4 approved and OEM & ODM services offered| Optimum LiFePO4 Battery/Lithium Battery Pack (24V 5Ah---200Ah) | |||||||||
| 5/10/15/20/30/40/50/60/70/100/120/150/200Ah | |||||||||
| Item No. | OPT24005 | OPT24010 | OPT24010 | OPT24015 | OPT124020 | OPT24030 | OPT24040 | ||
| Standard Capacity | 5Ah | 10Ah | 10Ah | 15Ah | 20Ah | 30Ah | 40Ah | ||
| Rated Voltage | 25.6V | ||||||||
| Discharge Voltage Range | 25.6~29.2 | ||||||||
| Discharge Cut-off Voltage | 20V | ||||||||
| Cell Model | IFR32650/32750 | ||||||||
| Casing Material | Steel Case for Single Cells | ||||||||
| Self Discharge Rate | ≤3% after one month | ||||||||
| Life Cycles | >2000 times (with 1C constant charge and discharge cycle) | ||||||||
| Max Continuous Discharge Current | 2C | ||||||||
| Max Charger Voltage | DC29.2V | ||||||||
| Standard Charge Current | 0.2C | ||||||||
| Standard Discharge Current | |||||||||
| Protection Function | Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage | ||||||||
| Product Size(mm) | 147*71*71 | 361*112*81 | 181*76*167 | 197*125*155 | 190*165*175 | 350*168*179 | 280*280*78 | ||
| Approx N.W | 1.45Kg | 3.8Kg | 3.5Kg | 4.5Kg | 6.0Kg | 8.68Kg | 10.5Kg | ||
| OPT24050 | OPT24060 | OPT24070 | OPT24100 | OPT24150 | OPT24200 | ||||
| Standard Capacity | 50Ah | 60Ah | 70Ah | 100Ah | 150Ah | 200Ah | |||
| Product Size(mm) | 323*171*215 | 275*210*195 | 500*170*203 | 360*220*262 | 520*265*220 | 560*360*200 | |||
| Approx N.W | 15Kg | 20Kg | 22Kg | 35Kg | 51Kg | 68Kg | |||
Features of 24V 10Ah LiFePO4 battery are as follow:
1. Light weight, about 1/3 the weight of lead-acid battery
2. Small size, about 1/2 size of lead-acid battery, Customized
3. Energy Density (weight ratio): 110 Wh/Kg; Energy Density (weight ratio): 288 Wh/L
4.2000 cycles life with 80%DOD versus 300 for lead acid.
5. Extremely low self discharge rate, ≤ 3% after 1 month
6. High discharge rate capability, continuous discharge current ≤ 2.5C, peak discharge current ≤ 5C
7. Safety: Environmentally friendly, non-toxic, No explosion
8. No memory effect.
In optimum, each cell and pack are produced with the principle "conformity in 6 aspects; Thus, the high stability and reliability can be guaranteed.
Principle of conformity in 6 aspects:
1. Conformity in capacity.
2. Conformity in impedance.
3. Conformity in self-dischargeing.
4. Conformity in voltage(soc).
5. Conformity in discharge stage.
6. Conformity in charge CC ratio.
Product Application:
Energy storage, UPS, Back-up power, Solar system, Power tools, Lawn mower, . Electric vehicle, Sightseeing Bus, Glof cart, E-bike, E-scooter, E-wheelchair, E-motorcycle, miner's lamp and so on.
Company Name: OptimumNano Energy Co., Ltd
Name of Exhibition: The China Sourcing Fair
Address: Hong Kong Asia Exhibition Hall
Booth No: At at 9B05
Dates: Oct 11-14, 2015(4 Days)
In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.
In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future
In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.
In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".
In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.
In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.
In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.
In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry
OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.
After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
