Specifications
Prod Model: |
OPY-24-60 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No.: |
Ifr 32650 |
Cycle Life: |
2000 Times with 80%Dod |
Operating Temprature: |
-20~60 Centigrade |
Weight: |
1/3 SLA Battery |
Pack Dimension: |
1/2 SLA Battery |
Service: |
OEM & ODM |
Case Or Project: |
The 26th World Universidad Games |
Advantage: |
High Power, Portable, Non-Toxic |
Human Resource: |
More Than 2000 Staffs and 300 Engineers |
Application: |
UPS, Back-up Power, Energy Storage, Solar System |
Certification: |
CE, UL, Rohssgs, Ts/16949 and ISO9001-2008 |
Rated Capacity: |
60ah |
Product Description

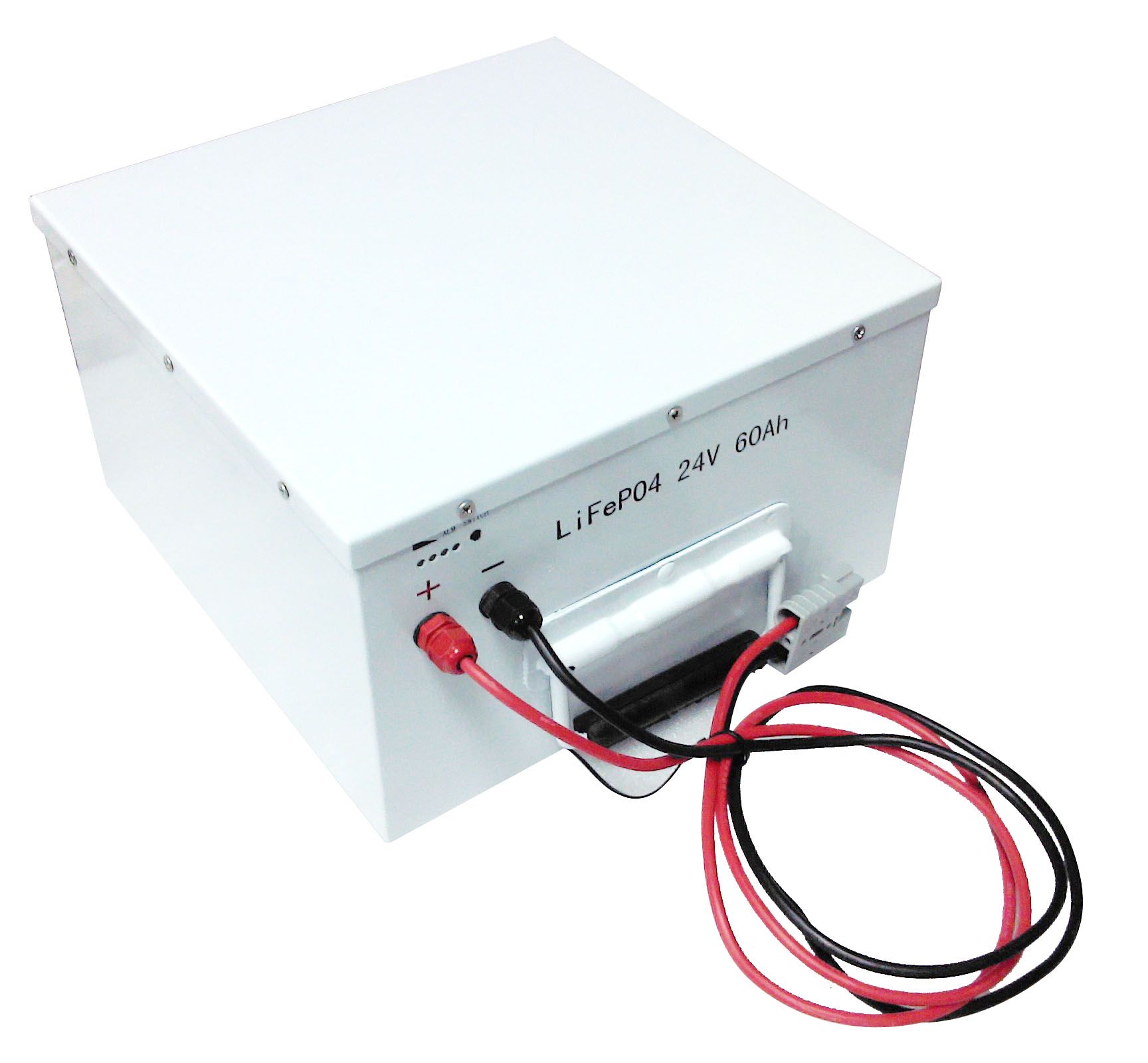

24V60ah Lithium Ion Battery Packs for Solar Lighting System
The biggest LiFePO4 battery manufacturer in China with CE, UL, RoHSSGS, TS/16949 and ISO9001-2008 approved and OEM & ODM services offered
Features of 24V 60Ah LiFePO4 battery are as follow:
1. Light weight, about 1/3 the weight of lead-acid battery
2. Small size, about 1/2 size of lead-acid battery, Customized
3. Energy Density (weight ratio): 110 Wh/Kg; Energy Density (weight ratio): 288 Wh/L
4.2000 cycles life with 80%DOD versus 300 for lead acid.
5. Extremely low self discharge rate, ≤ 3% after 1 month
6. High discharge rate capability, continuous discharge current ≤ 2.5C, peak discharge current ≤ 5C
7. Safety: Environmentally friendly, non-toxic, No explosion
8. No memory effect.
In optimum, each cell and pack are produced with the principle "conformity in 6 aspects; Thus, the high stability and reliability can be guaranteed.
Principle of conformity in 6 aspects:
1. Conformity in capacity.
2. Conformity in impedance.
3. Conformity in self-dischargeing.
4. Conformity in voltage(soc).
5. Conformity in discharge stage.
6. Conformity in charge CC ratio.
Product Application:
Energy storage, UPS, Back-up power, Solar system, Power tools, Lawn mower, . Electric vehicle, Sightseeing Bus, Glof cart, E-bike, E-scooter, E-wheelchair, E-motorcycle, miner's lamp and so on.
l Electrical Charateristics
Nominal Voltage | 24V |
Nominal Capacity | 60Ah |
Impedance (Max. at1000Hz) | ≤12mΩ |
Expected Cycle Life | 2000 times |
l Mechanical Characteristics
Height | 170±1mm |
Width | 310±1mm |
Length | 285±1mm |
Weight | ~21Kg |
l Operation Conditions
Charge Method | Constant Current/Constant Voltage (CC-CV) |
Max. Charge Voltage | 29.2V |
Standard Charge Current | 30A |
Charge Temperature | 0ºC~45ºC |
Continuous Discharge Current | 30A |
Peak Instant Discharge Current | 45A |
Peak Instant Discharge Time | 5 seconds |
Discharge Cut-off Voltage | 20V |
Discharge Temperature | -20ºC~65ºC |
Storage Temperature | -20ºC~45ºC |
