Home Wuxi Huina Vehicle Co., Ltd. EEC EPA Gokart (500CC)
Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Start-up: | Electric |
| Transmission: | Shaft |
| Displacement: | >400CC |
| Certification: | EEC |
Product Description

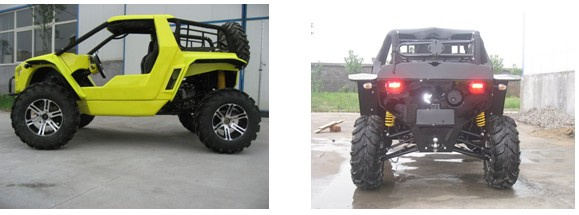

EEC EPA Gokart 500CCSpecification of
1) Engine type: Single Cylinder, 4-stroke, air and water-cooled, 4-valve, CVT, R/N/L/H
2) Displacement: 493CC
3) Max Torque: 38.8N. M/5500r/min (Europe standard: 30N. M/4500r/min)
4) Max Power: 24kw/6500r/min (Europe standard: <15kw/6500r/min)
5) Compression ration: 10.2: 1
6) Ignition system: CDI
7) Oil capacity: 33L.
8) Economical oil exhaust(L/100km): 6 L
9) Max speed: 90km/h with digital speed metter (Europe standard: 75km/h)
10) Starter system: Electric
11) Transmission: Dual independent shaft drive
12) Brake Type: Disc brake / disc brake (Hydraulic)
13) Wheelbase: 1950mm
14) Ground clearance: 380mm
15) Tires (front / rear): 25 x 8-12/ 25 x 10-12 Or 27 x9-14/27 x11-14
16) N. W.: 480kgs G. W.: 685kgs
17) Product dimension: 2982*1616*1475mm
18) Carton dimension: 2950*1150*1200mm
19) Turning radius of 3.1 m
20) winch /3000kg
21) Battery: 12V18A
22) 4 suspension Hydraulic Adjustable
21) Qty/20FT: 8 units (take down the rear suspension)
Qty/40HQ: 16units
