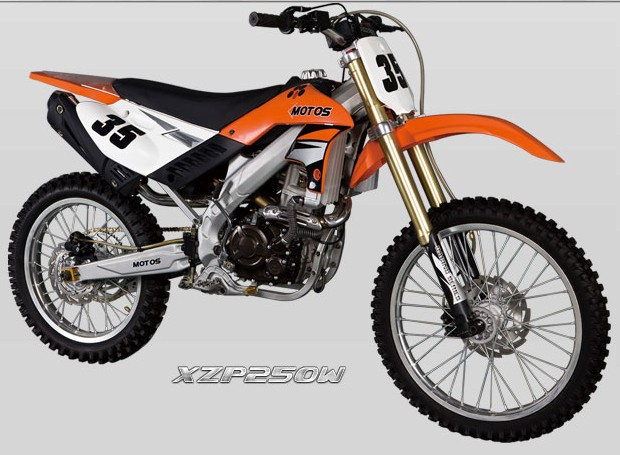

Home Wuxi Huina Vehicle Co., Ltd. Dirt Bike (HN250) EEC, EPA
Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Certification: | EEC |
| Starting System: | Kick Start and Electric Start |
| Engine: | 4 Stroke |
| Displacement: | >250CC |
Product Description
Dirt bike (HN250) EEC, EPAEngine
Type Four-stroke, single cylinder / Electric-kick start, water cooled
Displacement 249.4ml (250CC)
Bore x Stroke 70 x 64.8mm
Compression Ratio 9.5: 1
Max Power 12.5Kw / 7500rpm (1 ± 5%)
Ignition CDI
Transmission Five-speed with manual Clutch, 1-N-2-3-4-5
Final Drive Chain Drive
Suspension / Brakes / Tires
Suspension / Front Inverted and hydraulic fork 850mm length
Suspension / Rear Hydraulic and damping shock absorber 475mm length
Brakes / Front Hydraulic single 240mm petal disc with dual piston caliper
Brakes / Rear Hydraulic single 220mm petal disc with dual piston caliper
Tires / Front 80 / 100-21"
Tires / Rear 110 / 100-18"
Dimensions
Length 2055mm / 80.90in.
Width 840mm / 33.07in.
Height 1200mm / 47.24in.
Wheelbase 1390mm / 54.72in.
Ground Clearance 350mm / 13.80in.
Seat Height 950mm / 37.40in.
Dry Weight 115kgs / 253.53lbs.
Fuel Capacity 5.5L / 1.45gal.
Color White, Orange, Red, Black
