Home Wuxi Huina Vehicle Co., Ltd. Dirt Bike (HN500) EEC, EPA
Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Certification: | EEC |
| Starting System: | Kick Start and Electric Start |
| Engine: | 4 Stroke |
| Displacement: | >250CC |
Product Description

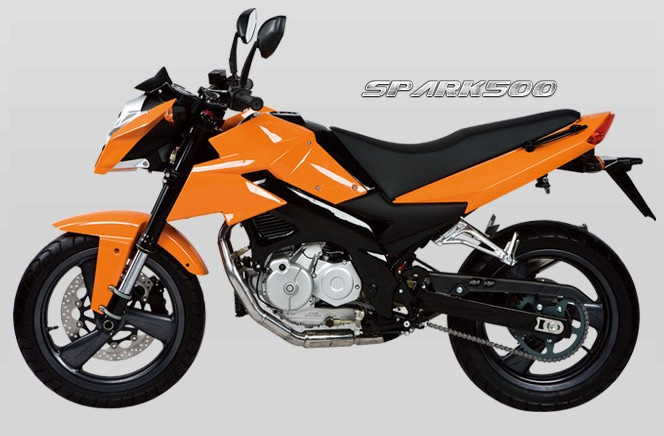

Dirt bike (HN500) EEC, EPAEngine
Engine Type 498CC oil-cooled, single cylinder, 4-stroke, SOHC engine
Bore & Stroke 92.8mm * 73.6mm
Compression ratio 9.2: 1
Fuel System BOSCH Fuel Injection or Carburetor
Maximum Output 40.8kw / 7800rpm
Maximum Torque 39.3N. M / 5500rpm
Ignition DC-CDI / MSE3.0
Starting Electric
Gearshift 5-speed, international gear shift
Final Drive 520 chain
CHASIS / SUSPENSION / BRAKES
Chasis Steel
Front Suspension Inverted telescopic fork adjustable, 150mm travel
Rear Suspension Single shock, 40mm travel
Front Brake 320mm single disc with twin-piston caliper
Rear Brake 240mm single disc with twin-piston caliper
Tyres Front 110/70-17'
Tyres Rear 140/70-17'
DIMENSIONS
L × W × H 2018 × 856 × 1135 mm
Wheelbase 1410 mm
Ground Clearance 190 mm
Seat Height 850 mm
Fuel Capacity 13 liters
Weight 158 kgs
OTHERS
Avaliable Colors Red / Orange / Green
QTY (1*20') 24PCS
