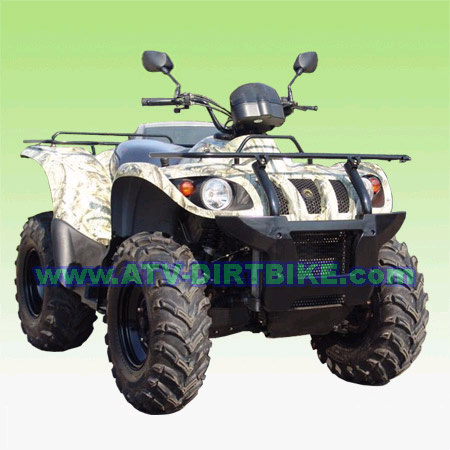

EEC ATV (JAGUAR 500-EC )

Specifications

Prod Model:	JAGUAR 500-EC

Product Description

CVT fully auto with hand reverse, and extra low gear. R, N, D, L

2WD/4WD adjustable by electric switch;
4 wheels independent suspension;
Japanese imported caburetor, easy starting in snowing area;
4 wheels disc brake;
LH hand brake stop the front wheels;
RH hand brake stop the rear wheels;
Foot brake stop the 4 wheels;
Shaft drive;
Big radiator.

Engine: 4 strokes, water- cool, CTV Fully Auto;
Cylinder: Single cylinder;
Lubrication: Pressure splash;
Cylinder Bore Diamiter: 92mm(3.63");
Piston Stroke: 75mm(2.96");
Displacement: 498.6cm3;
Compression Ratio: 10.2: 1;
Carburetor: Single Chanber;
Transmission: CVT Fully Auto w/Belt;
Gear Shiftting R, N, D, L (Reverse, Neutual, Drive, Low gear);
Max Power: 24 kw / 6800r / min;
Max Torge: 38 N. M / 5000r /min;
L x W x H: 2020mm x 1160mm x 1170mm;
Weight: 330kg;
Brake: Front + Rear Disc Brake.

QTY/Container: 10 units/20'; 24 units/40'.
